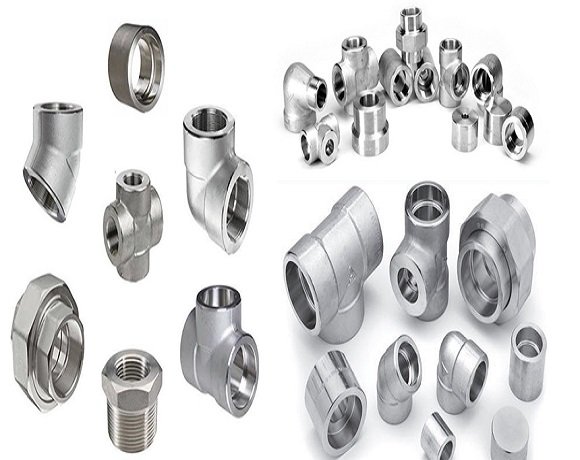

Silicon Steels is a supplier of Super Duplex 2507 Socketweld Fittings from India at affordable price. Silicon Steels offers Super Duplex 2507 Socket weld Fittings to the customer at various dimension and length. Our offer is made in a way that customer can easily afford their application need. The Super Duplex 2507 Stainless Steel is designed to withstand highly corrosive environments, and the situations requiring high strength. In Super Duplex 2507, high levels of molybdenum, chromium and nitrogen help the material to cope with pitting and corrosion. The material is resistant to chloride stress cracking, erosion-corrosion, and acid corrosion. The alloy is highly weldable and mechanically strong. The personalization of our products helps us change our production techniques. Specialized team works with the slogan that the international quality of products is obtained. Our goal is to regularly supply our customers with quality goods so that their needs can be effectively met.
The company offers long-term design and on-time delivery products at the best price in India. At every stage of production, from the primary phase of production to delivery, Super Duplex 2507 Socketweld Fittings is given special attention. High corrosion resistance and better pitting resistance in comparison with the other stainless steel grades are the essential features of Super Duplex 2507. This alloy is also very resistant to most chemicals, making them the best for use in industries. Top-quality material from both a trusted and a certified factory is obtained. Top-quality material has innumerable advantages such as corrosion resistance, ductility and robust performance. Duplex 2507 Socket weld Fittings accuracy can be ensured with the help of tests. Such tests are carried out under the strict supervision of the experts, as no compromise is acknowledged in the product quality. Every product goes under strict inspection after products are made. Goods are checked according to various criteria to ensure standard quality. Tests ensure and depict the quality of each product in different working conditions and its ability in specific applications to render durability in working condition.
Siliconsteelalloys is the manufacturer and exporter of Super Duplex 32750/2507 Socketweld fittings. We create excellent grades of products that show outstanding properties over various environmental conditions. To maintain their high-quality standards, it is important to pass them from stringent tests, and we do the same for the highest satisfaction to our clients.
Duplex has a wide range of specific grades, but Duplex 32750/2507 grades are two of the most demandable qualities in the market. Super Duplex s32750/2507 is the highest chromium and nickel grade alloy fittings, which have a chemical composition of nickel and chromium as 25 and 7 per cent, respectively. Duplex s32750/2507 Fittings are run with ferritic and austenitic structures; one provides good strength and another high resistance from corrosions. Duplex s32750/2507 Fittings also show excellent resistivity against oxidation. Duplex s32750/2507 Fittings typically range at the elevated temperatures in such a way from 58 to 572 Degree F. However, Duplex s32750/2507 Fittings can suffer precipitation at the extended temperature of more than as suggested. So precaution should be taken at unrecommended temperatures.
| Specifications | ASTM A182 & ASME SA182 |
| Dimension Standard | ASME 16.11, MSS SP-79, 83, 95, 97, BS 3799 |
| Size Range | 1/8" NB to 4" NB (Socketweld & Screwed-Threaded) |
| Class | 2000 LBS, 3000 LBS, 6000 LBS, 9000 LBS |
| Type | Socketweld Fittings, Screwed-Threaded Fittings |
| Forged Fittings Items | 45 Deg Elbow, 90 Deg Elbow, Forged Tee, Union, Full Coupling, Half Coupling, Cross, Cap, Swage Nipple, Plug, Bush, Welding Boss, Hexagonal Nipple etc |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| STANDARD | UNS | WERKSTOFF NR. |
| Super Duplex S32750 | S32750 | 1.4410 |
| Grade | C | N | P | Si | Mn | Mo | Ni | Cr | S | Cu |
| S32750 | 0.030 | 0.24/0.32 | 0.035 | 0.80 | 1.20 | 3.0/5.0 | 6.00/8.00 | 24.0/26.0 | 0.020 | 0.50 |
| DN | Nom. Pipe Size |
Center to End Elbows.Tees.Cross A |
Center to End 45° Elbow C |
Outside Diameter of Band H |
Minumum Wall Thickness G |
Length of Thread. Min.(1) |
|||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | 2000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8 | 21 | 21 | 25 | 17 | 17 | 19 | 22 | 22 | 25 | 3.18 | 3.18 | 6.35 | 6.4 | 6.7 |
| 8 | 1/4 | 21 | 25 | 28 | 17 | 19 | 22 | 22 | 25 | 33 | 3.18 | 3.30 | 6.60 | 8.1 | 10.2 |
| 10 | 3/8 | 25 | 28 | 33 | 19 | 22 | 25 | 25 | 33 | 38 | 3.18 | 3.51 | 6.98 | 9.1 | 10.4 |
| 15 | 1/2 | 28 | 33 | 38 | 22 | 25 | 28 | 33 | 38 | 46 | 3.18 | 4.09 | 8.15 | 10.9 | 13.6 |
| 20 | 3/4 | 33 | 38 | 44 | 25 | 28 | 33 | 38 | 46 | 56 | 3.18 | 4.32 | 8.53 | 12.7 | 13.9 |
| 25 | 1 | 38 | 44 | 51 | 28 | 33 | 35 | 46 | 56 | 62 | 3.68 | 4.98 | 9.93 | 14.7 | 17.3 |
| 32 | 1-1/4 | 44 | 51 | 60 | 33 | 35 | 43 | 56 | 62 | 75 | 3.89 | 5.28 | 10.59 | 17.0 | 18.0 |
| 40 | 1-1/2 | 51 | 60 | 64 | 35 | 43 | 44 | 62 | 75 | 84 | 4.01 | 5.56 | 11.07 | 17.8 | 18.4 |
| 50 | 2 | 60 | 64 | 83 | 43 | 44 | 52 | 75 | 86 | 102 | 4.27 | 7.14 | 12.09 | 19.0 | 19.2 |
| 65 | 2-1/2 | 76 | 83 | 95 | 52 | 52 | 64 | 92 | 102 | 121 | 5.61 | 7.65 | 15.29 | 23.6 | 28.9 |
| 85 | 3 | 86 | 95 | 106 | 64 | 64 | 79 | 109 | 121 | 146 | 5.99 | 8.84 | 16.64 | 25.9 | 30.5 |
| 100 | 4 | 106 | 114 | 114 | 79 | 79 | 79 | 146 | 152 | 152 | 6.55 | 11.18 | 18.67 | 27.7 | 33.0 |
| DN | Nom. Pipe Size |
End to End Couplings W |
End to End Caps P |
Outside Diameter D |
End Wall Thickness G Min. |
Length of Thread. Min.(1) |
||||
|---|---|---|---|---|---|---|---|---|---|---|
| 3000&6000 | 3000 | 6000 | 3000 | 6000 | 3000 | 6000 | B | L2 | ||
| 6 | 1/8 | 32 | 19 | … | 16 | 22 | 4.8 | … | 6.4 | 6.7 |
| 8 | 1/4 | 35 | 25 | 27 | 19 | 25 | 4.8 | 6.4 | 8.1 | 10.2 |
| 10 | 3/8 | 38 | 25 | 27 | 22 | 32 | 4.8 | 6.4 | 9.1 | 10.4 |
| 15 | 1/2 | 48 | 32 | 33 | 28 | 38 | 6.4 | 7.9 | 10.9 | 13.6 |
| 20 | 3/4 | 51 | 37 | 38 | 35 | 44 | 6.4 | 7.9 | 12.7 | 13.9 |
| 25 | 1 | 60 | 41 | 43 | 44 | 57 | 9.7 | 11.2 | 14.7 | 17.3 |
| 32 | 1-1/4 | 67 | 44 | 46 | 57 | 64 | 9.7 | 11.2 | 17.0 | 18.0 |
| 40 | 1-1/2 | 79 | 44 | 48 | 64 | 76 | 11.2 | 12.7 | 17.8 | 18.4 |
| 50 | 2 | 86 | 48 | 51 | 76 | 92 | 12.7 | 15.7 | 19.0 | 19.2 |
| 65 | 2-1/2 | 92 | 60 | 64 | 92 | 108 | 15.7 | 19.0 | 23.6 | 28.9 |
| 80 | 3 | 108 | 65 | 68 | 108 | 127 | 19.0 | 22.4 | 25.9 | 30.5 |
| 100 | 4 | 121 | 68 | 75 | 140 | 159 | 22.4 | 28.4 | 27.7 | 33.0 |
| SIZE | A | B | QTY | WEIGHT |
|---|---|---|---|---|
| ¼ | 0.81 | 0.88 | 160 | 0.20 |
| ⁄ | 0.97 | 1.00 | 130 | 0.26 |
| ½ | 1.12 | 1.31 | 100 | 0.57 |
| ¾ | 1.31 | 1.5 | 75 | 0.71 |
| 1 | 1.5 | 1.81 | 40 | 1.08 |
| 1 ¼ | 1.75 | 2.19 | 25 | 1.68 |
| 1 ½ | 2.00 | 2.44 | 18 | 2.38 |
| 2 | 2.38 | 2.97 | 10 | 3.55 |
| 2 ½ | 3.00 | 3.62 | 4 | 6.22 |
| 3 | 3.38 | 4.31 | 2 | 10.36 |
| 4 | 4.19 | 5.75 | 1 | 23.91 |
| NPS | Minimum Length of Thread |
Outside Diameter of Band D |
Center to End A |
Minimum Wall Thickness |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1 ¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1 ½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2 ½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
| Normal Pipe Sizes | Min. Length of Thread |
O.D> of Band D |
Center to End A |
Min. Wall Thick. |
|
| B | J | ||||
| 1/2 | 10.9 | 13.6 | 33 | 28 | 3.18 |
| 3/4 | 12.7 | 13.9 | 38 | 33 | 3.18 |
| 1 | 14.7 | 17.3 | 46 | 38 | 3.68 |
| 1 ¼ | 17 | 18 | 56 | 44 | 3.89 |
| 1 ½ | 17.8 | 18.4 | 62 | 51 | 4.01 |
| 2 | 19 | 19.2 | 75 | 60 | 4.27 |
| 2 ½ | 23.6 | 28.9 | 92 | 76 | 5.61 |
| 3 | 25.9 | 30.5 | 109 | 86 | 5.99 |
| 4 | 27.7 | 33 | 146 | 106 | 6.55 |
| Thread Of NPT Size And Pitch |
Dash Size |
Thread Male Minor Outside Daimeter |
Female ID Thread |
||
| inches – TPI | millimeter | inches | millimeter | inches | |
| 1/8 – 27 | -02 | 9,9 | 0.39 | 8,4 | 0.33 |
| 1/4 – 18 | -04 | 13,2 | 0.52 | 11,2 | 0.44 |
| 3/8 – 18 | -06 | 16,6 | 0.65 | 14,7 | 0.58 |
| 1/2 – 14 | -08 | 20,6 | 0.81 | 17,8 | 0.70 |
| 3/4 – 14 | -12 | 26,0 | 1.02 | 23,4 | 0.92 |
| 1 – 11.1/2 | -16 | 32,5 | 1.28 | 29,5 | 1.16 |
| 1.1/4 – 11.1/2 | -20 | 41,2 | 1.62 | 38,1 | 1.50 |
| 1.1/2 – 11.1/2 | -24 | 47,3 | 1.86 | 43,9 | 1.73 |
| 2 – 11.1/2 | -32 | 59,3 | 2.33 | 56,4 | 2.22 |
| 2.1/2 – 8 | -40 | 71,5 | 2.82 | 69,1 | 2.72 |
| 3 – 8 | -48 | 87,3 | 3.44 | 84,8 | 3.34 |
| Bspp And Bspt Pitch And Size |
Dash Size |
Bspt Male Thread Outside Daimeter |
Bspp Male THREAD Outside Daimeter |
Bspt Female Thread Inside Daimeter |
Bspt Female Thread Inside Daimeter |
||||
| inches – TPI | millimeter | inches | millimeter | inches | millimeter | inches | millimeter | inches | |
| 1/8 – 28 | -02 | 9,5 | 0.37 | 9,6 | 0.38 | 8,4 | 0.33 | 8,6 | 0.34 |
| 1/4 – 19 | -04 | 12,8 | 0.50 | 13,0 | 0.51 | 11,2 | 0.44 | 11,9 | 0.47 |
| 3/8 – 19 | -06 | 16,3 | 0.64 | 16,5 | 0.65 | 14,7 | 0.59 | 15,2 | 0.60 |
| 1/2 – 14 | -08 | 20,4 | 0.80 | 20,8 | 0.82 | 18,3 | 0.72 | 19,1 | 0.75 |
| 5/8 – 14 | -10 | 22,5 | 0.89 | 22,8 | 0.90 | 20,6 | 0.81 | 20,8 | 0.82 |
| 3/4 – 14 | -12 | 25,9 | 1.02 | 26,3 | 1.04 | 23,9 | 0.94 | 24,6 | 0.97 |
| 1 – 11 | -16 | 32,6 | 1.28 | 33,1 | 1.30 | 29,7 | 1.17 | 30,7 | 1.21 |
| 1.1/4 – 11 | -20 | 41,1 | 1.62 | 41,8 | 1.64 | 38,6 | 1.52 | 39,4 | 1.55 |
| 1.1/2 – 11 | -24 | 47,0 | 1.85 | 47,7 | 1.88 | 44,5 | 1.75 | 45,5 | 1.79 |
| 2 -11 | -32 | 58,6 | 2.31 | 59,5 | 2.34 | 56,4 | 2.22 | 57,4 | 2.26 |
| 2.1/2 – 11 | -40 | 74,1 | 2.92 | 75,1 | 2.95 | 71,9 | 2.83 | 72,6 | 2.86 |
| 3 – 11 | -48 | 86,6 | 3.41 | 87,9 | 3.46 | 84,6 | 3.33 | 85,4 | 3.36 |
| ANSI B16.11 American Standard Dimensional Tolerances | ||
|---|---|---|
| "A" - Threaded Center To Bottom | For Size 1/8" And 1/4" | ± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "B" - Threaded Bore Diameter | For Size 1-1/2" And Smaller |
+ 0.020" - 0.000" |
| 2", 2-1/2", 3" And 4" | + 0.025" - 0.000" |
|
| "C" - Threaded Wall Thick. | Min. = 1.09 T (But Not Less Than 5/32") T = Wall Thickness Of Nominal Pipe Sizes |
|
| "D" - Bore Diameter Of Pipe Fitting | For Size 2" And Smaller | ± 0.030" |
| 2-1/2", 3" And 4" | ± 0.060" | |
| "E" - Threadeds- Bottom To Bottom - Full Couplings | For Size 1/8" And 1/4" | ± 0.06" |
| 3/8", 1/2" And 3/4" | ± 0.12" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.16" | |
| 2-1/2", 3", And 4" | ± 0.20" | |
| "F" - Bottom Of Threaded To Opposite Face - ANSI B16.11 Half Couplings | For Size 1/8" And 1/4" | ± 0.03" |
| 3/8", 1/2" And 3/4" | ± 0.06" | |
| 1", 1-1/4", 1-1/2" And 2" | ± 0.08" | |
| 2-1/2", 3", And 4" | ± 0.10" | |
| "G" - Gap Of Welding | Approx. 0.06" Before Welding Recommended Gap |
|
| "H" - Min. Flat | Min. Flat = 0.75 X Min. Threaded Wall Thick. |
|
Super Duplex 2507 Socket Weld 90° Elbow
$74.00
Super Duplex S32750 Socket Weld 45° Elbow
$95.00
ASTM A182 Socket Weld Tee
$12.00
Alloy 2507 Socket Weld Cross
$18.00
ASME SA182 Socket Weld Full Coupling
$23.00
UNS S32750 Socket Weld Half Coupling
$ 85.00
Werkstoff Nr. 1.4410 Socket Weld Pipe Cap
$14.00
Saf 2507 Socket Weld Union
$36.00
Super Duplex S32750 Socket Weld Reducer Insert
$32.00
ASTM A182 Socket Weld Boss
$36.00
Super Duplex 2507 Socket Weld Branch Outlet
$25.00
Alloy 2507 Socket Weld 90° Elbow Outlet
$74.00
UNS S32750 Socket Weld 45° Lateral Tee
$95.00
Werkstoff Nr. 1.4410 Socket Weld Lateral Outlet
$41.00
Saf 2507 Socket Weld Unequal Tee
$32.00
Super Duplex S32750 Socket Weld Equal Tee
$14.00
Super Duplex 2507 Socket weld Reducers
$32.00
Alloy 2507 Socket Weld Pipe Nipple
$14.00
UNS S32750 Socket Weld Adapters
$24.00
Threaded 90° Elbow
$23.00
Werkstoff Nr. 1.4410 Threaded Lateral Tee
$32.00
Saf 2507 Threaded 45° Elbow
$13.00
Super Duplex S32750 Threaded Tee
$15.00
Super Duplex 2507 Threaded Cross
$19.00
Alloy 2507 Threaded Full Coupling
$22.00
UNS S32750 Threaded Half Coupling
$37.00
Werkstoff Nr. 1.4410 Threaded Reducing Coupling
$52.00
Saf 2507 Threaded Pipe Cap
$44.00
Super Duplex S32750 Threaded Bushing
$30.00
ASTM A182 Threaded Hex Plug
$22.00
Super Duplex 2507 Threaded Square Head Plug
$33.00
ASME SA182 Threaded 90° Outlet Elbow
$11.00
Alloy 2507 Threaded Union
$15.00
Threaded Hex Nipple
$53.00
UNS S32750 Threaded Street Elbow
$10.00
Werkstoff Nr. 1.4410 Threaded Bull Plug
$23.00
Saf 2507 Threaded Boss
$56.00
Super Duplex S32750 Threaded Swage Nipple
$22.00
ASTM A182 Threaded Pipe Nipple
$12.00
Super Duplex 2507 Threaded Adapter
$20.00
Alloy 2507 Threaded Branch Outlet
$30.00
UNS S32750 Threaded Reducing Tee
$42.00
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
