Stainless Steel 347 Seamless Welded Pipe

347 Seamless and Welded Austenitic Stainless Steel Pipes Exporter, Stainless Steel 347 Seamless Pipe, DIN 1.4550 ERW Pipe Exporter, Grade 347 SS Seamless Pipe SAE 347 Pipes, Stainless Steel 347 Pipe, Stainless Steel 347 Welded Tubes, Inox 347 Pipes Supplier.


Seamless Pipes

Table of Content

At Silicon Steels, we specialize in 347 Stainless Steel Seamless pipes, which are custom-made and available in standard sizes at reasonable prices. Our superior quality Austenitic grade 347 stainless steel Welded tubes are distributed throughout the market. These tubes and pipes, i.e. UNS S34700 Pipe, have excellent resistance to high temperatures. The Stainless Steel 347 Seamless pipes, also known as the 1.4550 Pipe, are perfect for welding components that can't be refurbished later. Our company offers custom length and form options for the 347 Stainless Steel Tubes at the most competitive prices in the market. The SUS347 Tubes can also be manufactured according to our customer's specific piping needs.


SeamlessWelded Pipe making
SeamlessWelded Pipe Process

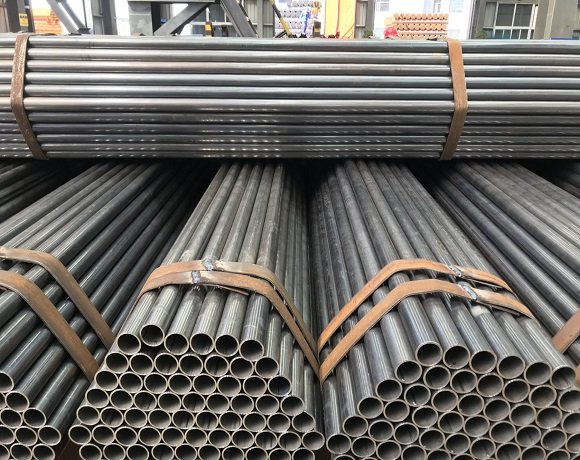

stainless steel 347 seamless welded pipe supplier stockist

347 Stainless Steel EFW Tube, AISI 347 Stainless Steel Pipe Supplier, Stainless Steel 347 Electropolished Tubes, 347 Stainless Steel Hollow Pipe, SS 347 High-Temperature Tubes, SS WERKSTOFF NR. 1.4550 Welded Pipe Expoter.

Stainless Steel 347 Welded Pipe is the higher carbon composition of Alloy 347 and has improved high temperature and creep characteristics. This premium AISI 347 quality is always recognized for its many features, including reliable and long-lasting finish, strong construction, non-corrosiveness and ease of installation. The alloy 321H pipes also have good mechanical characteristics and are advantageous for high-temperature service. Type Stainless Steel 347 Cold Drawn Pipes for forging, molding, and other hot works, working temperatures of 2100 to 2250 degrees F (1149 – 1232 degrees C) are recommended. While strong oxidizing environments, the ASTM A312 Stainless Steel TP 347 Pipes are similar to the grade SS 321, with slightly improved corrosion resistance. The Stainless Steel 347 tubes are popularly used for petroleum refineries, aircraft engine parts, electricity generation, heat exchangers, pressure vessels, sold manufacturing and other high-heat applications, usually referred to as the UNS S34700.

Specification :

Specifications ASTM A/ASME SA213/A249/A269/A312/A35
Seamless Pipes & Tubes Sizes 1 / 2" NB - 8" NB
Welded Pipes & Tubes Sizes 6" NB - 24" NB
Outer Diameter 6.0-630mm
Schedule SCH 10, SCH20, SCH30, SCH40, STD, SCH60, XS, SCH80, SCH120, SCH140, SCH160, XXS
Thickness 0.3mm – 50 mm
Type Seamless / ERW / Welded/ Fabricated
Form Round Pipes/Tubes, Square Pipes/Tubes, Rectangular Pipe/Tubes, Coiled Tubes, "U" Shape, Pan Cake Coils, Hydraulic Tubes
Length Single Random, Double Random & Cut Length
End Plain End, Beveled End, Treaded

Types of Stainless Steel 347 Pipes :


steel seamless pipe
  • ASTM A312 Stainless Steel 347 Sch 40 Seamless Pipe
  • S34700 Stainless Steel Sch 160 Seamless Pipe
  • ASME A312 SS 347 2B Finish Seamless Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Seamless Pipe
  • UNS S34700 Ba Finish Seamless Pipe
  • JIS SUS 347 Electropolished Seamless Pipe
    		•
  • BS 347S31 No.4 Seamless Pipe
  • Gost 08Ch18N12B No.8 Seamless Pipe
  • EN X6CrNiNb18-10 Mirror Finish Seamless Pipe
    		•
    steel seamless tube
  • ASTM A312 Stainless Steel 347 Sch 40 Tube
  • S34700 Stainless Steel Sch 160 Tube
  • ASME A312 SS 347 2B Finish Tube
    		•
  • Werkstoff Nr. 1.4550 Galvanized Tube
  • UNS S34700 Ba Finish Tube
  • JIS SUS 347 Electropolished Tube
    		•
  • BS 347S31 No.4 Tube
  • Gost 08Ch18N12B No.8 Tube
  • EN X6CrNiNb18-10 Mirror Finish Tube
    		•
    steel seamless round pipe
  • ASTM A312 Stainless Steel 347 Sch 40 Round Pipe
  • S34700 Stainless Steel Sch 160 Round Pipe
  • ASME A312 SS 347 2B Finish Round Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Round Pipe
  • UNS S34700 Ba Finish Round Pipe
  • JIS SUS 347 Electropolished Round Pipe
    		•
  • BS 347S31 No.4 Round Pipe
  • Gost 08Ch18N12B No.8 Round Pipe
  • EN X6CrNiNb18-10 Mirror Finish Round Pipe
    		•
    steel seamless square pipes
  • ASTM A312 Stainless Steel 347 Sch 40 Square Pipe
  • S34700 Stainless Steel Sch 160 Square Pipe
  • ASME A312 SS 347 2B Finish Square Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Square Pipe
  • UNS S34700 Ba Finish Square Pipe
  • JIS SUS 347 Electropolished Square Pipe
    		•
  • BS 347S31 No.4 Square Pipe
  • Gost 08Ch18N12B No.8 Square Pipe
  • EN X6CrNiNb18-10 Mirror Finish Square Pipe
    		•
    steel seamless rectangle pipes
  • ASTM A312 Stainless Steel 347 Sch 40 Rectangle Pipe
  • S34700 Stainless Steel Sch 160 Rectangle Pipe
  • ASME A312 SS 347 2B Finish Rectangle Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Rectangle Pipe
  • UNS S34700 Ba Finish Rectangle Pipe
  • JIS SUS 347 Electropolished Rectangle Pipe
    		•
  • BS 347S31 No.4 Rectangle Pipe
  • Gost 08Ch18N12B No.8 Rectangle Pipe
  • EN X6CrNiNb18-10 Mirror Finish Rectangle Pipe
    		•
    steel seamless ibr pipes
  • ASTM A312 Stainless Steel 347 Sch 40 IBR Pipe
  • S34700 Stainless Steel Sch 160 IBR Pipe
  • ASME A312 SS 347 2B Finish IBR Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized IBR Pipe
  • UNS S34700 Ba Finish IBR Pipe
  • JIS SUS 347 Electropolished IBR Pipe
    		•
  • BS 347S31 No.4 IBR Pipe
  • Gost 08Ch18N12B No.8 IBR Pipe
  • EN X6CrNiNb18-10 Mirror Finish IBR Pipe
    		•
    steel seamless fabricated pipes
  • ASTM A312 Stainless Steel 347 Sch 40 Fabricated Pipe
  • S34700 Stainless Steel Sch 160 Fabricated Pipe
  • ASME A312 SS 347 2B Finish Fabricated Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Fabricated Pipe
  • UNS S34700 Ba Finish Fabricated Pipe
  • JIS SUS 347 Electropolished Fabricated Pipe
    		•
  • BS 347S31 No.4 Fabricated Pipe
  • Gost 08Ch18N12B No.8 Fabricated Pipe
  • EN X6CrNiNb18-10 Mirror Finish Fabricated Pipe
    		•
    steel seamless Odd Size Pipe
  • ASTM A312 Stainless Steel 347 Sch 40 Odd Size Pipe
  • S34700 Stainless Steel Sch 160 Odd Size Pipe
  • ASME A312 SS 347 2B Finish Odd Size Pipe
    		•
  • Werkstoff Nr. 1.4550 Galvanized Odd Size Pipe
  • UNS S34700 Ba Finish Odd Size Pipe
  • JIS SUS 347 Electropolished Odd Size Pipe
    		•
  • BS 347S31 No.4 Odd Size Pipe
  • Gost 08Ch18N12B No.8 Odd Size Pipe
  • EN X6CrNiNb18-10 Mirror Finish Odd Size Pipe
    		•
    steel seamless cold drawn Pipe
  • ASTM A312 Stainless Steel 347 Sch 40 Cold Drawn Seamless Tubes
  • S34700 Stainless Steel Sch 160 Cold Drawn Seamless Tubes
  • ASME A312 SS 347 2B Finish Cold Drawn Seamless Tubes
    		•
  • Werkstoff Nr. 1.4550 Galvanized Cold Drawn Seamless Tubes
  • UNS S34700 Ba Finish Cold Drawn Seamless Tubes
  • JIS SUS 347 Electropolished Cold Drawn Seamless Tubes
    		•
  • BS 347S31 No.4 Cold Drawn Seamless Tubes
  • Gost 08Ch18N12B No.8 Cold Drawn Seamless Tubes
  • EN X6CrNiNb18-10 Mirror Finish Cold Drawn Seamless Tubes
    		•

    Equivalent Grade :

    Grade UNS No Old British Euronorm Swedish SS Japanese JIS
    BS En No Name
    347 S34700 – X6CrNiNb18-10 1.4550 – – –

    Chemical Composition :

    Grade C Mn Si P S Cr Mo Ni N
    347   min.   –   –   –   –   –   17.0   2.00   9.0   –
      max.   0.08   2.0   1.00   0.045   0.030   20.0   3.00   13.0   –

    Dimensions of Stainless Steel 347 Pipes

    seamless pipe dimensions

    Stainless Steel 347 Pipes Weight Chart

    NPS Outside Diameter Wall Thickness   Weight Weight
    in mm in mm Sched kg/Mtr Lb/ft
    1/2″ 0.840 21 0.109 2.769 40 STD 1.268 0.851
          0.147 3.734 80 STD 1.621 1.088
    3/4″ 1.050 27 0.113 2.870 40 STD 1.684 1.131
          0.154 3.912 80 STD 2.195 1.474
    1″ 1.315 33 0.133 3.378 40 STD 2.501 1.679
          0.179 4.547 80 STD 3.325 2.172
    1 1/4″ 1.660 42 0.140 3.556 40 STD 3.385 2.273
          0.191 4.851 80 STD 4.464 2.997
    1 1/2″ 1.900 48 0.145 3.683 40 STD 4.048 2.718
          0.200 5.080 80 STD 5.409 3.361
    2″ 2.375 60 0.154 3.912 40 STD 5.441 3.653
          0.218 5.537 80 STD 7.480 5.022
    2 1/2″ 2.875 73 0.203 5.516 40 STD 8.629 5.793
          0.276 7.010 80 STD 11.411 7.661
    3″ 3.500 89 0.216 5.486 40 STD 11.284 7.576
          0.300 7.620 80 STD 15.272 10.253
    4″ 4.500 114 0.237 6.020   16.073 10.790
          0.337 8.560   22.318 14.983
    6″ 6.625 168 0.188 4.775   19.252 12.924
          0.203 5.516   20.739 13.923
          0.219 5.563   22.318 14.983
          0.250 6.350   25.354 17.021
          0.280 7.112 40 STD 58.263 18.974
          0.312 7.925   31.334 21.036
          0.375 9.525   37.285 25.031
          0.432 10.973 80 XHY 42.561 28.573
          0.500 12.700   48.719 32.708
    8″ 8.625 219 0.188 4.775   25.233 16.940
          0.203 5.156   27.198 18.259
          0.219 5.563   29.286 19.661
          0.250 6.350 20 33.308 22.361
          0.277 7.036 30 36.786 24.696
          0.322 8.179 40 42.352 28.554
          0.375 9.525   49.216 33.041
          0.406 10.312 60 53.085 35.638
          0.500 12.700 80 XHY 64.627 43.388
    10″ 10.750 273 0.188 4.775   31.588 21.207
          0.219 5.563   36.689 24.631
          0.250 6.350 20 41.759 28.035
          0.307 7.798 30 51.002 34.240
          0.344 8.738   56.946 38.231
          0.365 9.271 40 STD 63.301 40.483
          0.438 11.125   71.852 48.238
          0.500 12.700 60 XHY 81.530 54.735
          0.594 15.088 80 95.969 64.429
    12″ 12.750 324 0.188 4.775   37.570 25.222
          0.219 5.563   43.657 29.309
          0.250 6.350   49.713 33.375
          0.281 7.137   55.739 37.420
          0.312 7.925   61.735 41.445
          0.375 9.525   73.824 49.562
          0.406 10.312   79.727 53.525
          0.500 12.700   97.438 65.415
          0.562 14.275   108.966 73.154
    14″ 14.000 356 0.188 4.775   41.308 27.732
          0.219 5.563   48.012 32.233
          0.250 6.350 20 54.685 36.713
          0.281 7.137   61.327 41.172
          0.312 7.925   67.939 45.611
          0.375 9.525 STD 81.281 54.568
          0.438 11.125 40 94.498 63.441
          0.500 12.700 XHY 107.381 72.090
          0.625 15.875   132.983 89.278
    16” 16.000 406 0.188 4.775   47.290 21.748
          0.219 5.563   54.980 36.910
          0.250 6.350 10 62.639 42.053
          0.281 7.137   70.268 47.174
          0.312 7.925 20 77.866 52.275
          0.344 8.738   85.677 57.519
          0.375 9.525

    30

    STD

    		 93.213 62.578
          0.438 11.125   108.433 72.797
          0.500 12.700

    40

    XHY

    		 123.289 82.770
    18″ 18.000 457 0.219 5.563   61.948 41.588
          0.250 6.350   70.593 47.393
          0.281 7.137   79.208 53.176
          0.312 7.925 20 87.792 58.939
          0.375 9.525 STD 105.144 70.588
          0.438 11.125 30 122.369 82.152
          0.500 12.700 XHY 139.198 93.450
          0.562 14.275 40 155.904 104.666
          0.625 15.875   172.754 115.978
    20″ 20.000 508 0.250 6.350   78.547 52.733
          0.282 7.163   88.458 59.386
          0.312 7.925   97.719 65.604
          0.375 9.525 20 STD 117.075 78.598
          0.438 11.125   136.305 91.508
          0.500 12.700 30 XHY 155.106 104.130
          0.594 15.088 40 183.378 123.110
          0.625 15.875   192.640 129.328
          0.688 17.475   211.368 141.901
    24″ 24.000 610 0.250 6.350   94.456 63.413
          0.281 7.137   106.029 71.183
          0.312 7.925   117.573 18.932
          0.375 9.525 20 STD 140.938 64.618
          0.438 11.125   164.176 110.219
          0.500 12.700 XHY 186.923 125.490
          0.625 15.875   232.410 156.028
          0.688 17.475 40 255.148 171.293
          0.750 19.050   277.401 186.233
    30″ 30.000 762 0.250 6.350   118.318 79.433
          0.281 7.137   132.851 89.189
          0.312 7.925 10 147.353 98.925
          0.375 9.525 STD 176.731 118.648
          0.438 11.125   205.983 138.286
          0.500 12.700 20 XHY 234.647 157.530
          0.625 15.875 30 292.066 196.078
          0.688 17.475   320.817 215.380
          0.750 19.050   348.988 234.293
    36″ 36.000 914 0.250 6.350   142.180 95.453
          0.281 7.137   159.672 107.196
          0.312 7.925 10 177.133 118.918
          0.375 9.525 STD 215.525 142.678
          0.438 11.125   247.790 166.353
          0.500 12.700 20 XHY 282.372 198.570
          0.625 15.875   351.723 236.128


    0.688

    		 17.475   386.487 259.467


    0.750

    		 19.050   420.576 282.353
    42″ 42.000 1067 0.312 7.925   206.914 138.911
          0.375 9.525 STD 248.319 166.708
          0.500 12.700 XHY 33.097 221.610
          0.750 19.050   492.163 330.413
    48″ 48.000 1219 0.375 9.525 STD 284.112 190.738
          0.438 11.125   331.404 222.487
          0.500 12.700 XHY 377.822 253.650
          0.750 19.050   563.750 378.473
          0.875 22.225   655.969 440.383

    Imperial Dimensions of Stainless Steel 347 Pipes Sizes

    Pipe OD
    mm    		 Pipe WT
    mm    		 in. Sch Kg/m
    13.72 1.65 1/4 10S 0.50
    13.72 2.24 1/4 40S 0.64
    13.72 3.02 1/4 80S 0.81
    17.15 1.65 3/8 10S 0.64
    17.15 2.31 3/8 40S 0.86
    17.15 3.20 3/8 80S 1.12
    21.34 2.11 1/2 10S 1.02
    21.34 2.77 1/2 40S 1.29
    21.34 3.73 1/2 80S 1.65
    26.67 2.11 3/4 10S 1.30
    26.67 2.87 3/4 40S 1.71
    26.67 3.91 3/4 80S 2.23
    33.40 2.77 1 10S 2.13
    33.40 3.38 1 40S 2.54
    33.40 4.55 1 80S 3.29
    33.40 6.352) 1 160 4.30
    42.16 2.77 1¼ 10S 2.73
    42.16 3.56 1¼ 40S 3.44
    42.16 4.85 1¼ 80S 4.53
    42.16 6.352) 1¼ 160 5.69
    48.26 2.77 1½ 10S 3.16
    48.26 3.68 1½ 40S 4.11
    48.26 5.08 1½ 80S 5.49
    60.33 2.77 2 10S 3.99
    60.33 3.91 2 40S 5.52
    60.33 5.54 2 80S 7.60
    60.33 8.742) 2 160 11.29
    73.03 3.05 2½ 10S 5.35
    73.03 5.16 2½ 40S 8.77
    73.03 7.01 2½ 80S 11.59
    88.90 3.05 3 10S 6.56
    88.90 5.49 3 40S 11.47
    88.90 7.62 3 80S 15.51
    88.90 11.132) 3 160 21.67
    101.60 3.05 3½ 10S 7.53
    101.60 5.74 3½ 40S 13.78
    101.60 8.08 3½ 80S 18.92
    114.30 3.05 4 10S 8.50
    114.30 6.02 4 40S 16.32
    114.30 8.56 4 80S 22.67
    114.30 13.492) 4 160 34.05
    141.30 6.55 5 40S 22.10
    141.30 9.53 5 80S 31.44
    141.30 15.882) 5 160 49.87
    168.28 3.4 6 10S 14.04
    168.28 7.11 6 40S 28.69
    168.28 10.97 6 80S 43.21
    168.28 14.27 6 120 54.75
    168.28 18.262) 6 160 68.59
    219.08 8.18 8 40S 43.20
    219.08 12.7 8 80S 65.63
    219.08 18.23 8 120 91.30
    219.08 23.012) 8 160 112.97

    Alloy Stainless Steel 347 Pipes Pressure Rating

    Pipe O.D.
    (In.)    		 Wall Thickness Of Pipe (Inches)
    .028 .035 .049 .065 .083 .095 .109 .120
    Working Pressure (Psig)
    1/8 7900 10100
    1/4 3700 4800 7000 9500
    5/16   3700 5400 7300
    3/8   3100 4400 6100
    1/2   2300 3200 4400
    3/4     2200 3000 4000 4600
    1       2200 2900 3400 3900 4300

    Welded Pipe Wall Thickness

    Types Out diameter Wall thickness Length
    NB Sizes (in stock) 1/8” ~ 8” SCH 5 / SCH 10 / SCH 40 / SCH 80 / SCH 160 Upto 6 Meters
    Duplex 2205 Seamless Pipe (Custom Sizes) 5.0mm ~ 203.2mm As per requirement Upto 6 Meters
    Duplex 2205 Welded Pipe (in Stock + Custom Sizes) 5.0mm ~ 1219.2mm 1.0 ~ 15.0 mm Upto 6 Meters

    Prices of Stainless Steel 347 Pipes:

    Stainless Steel 347 Pipes
    Stainless Seamless Pipe
    6" to 10" Sch 10 , Sch 20
    USD 6.23 Per Kg
    Welded Pipe
    Welded Pipe
    6" to 10" Sch 40 , Sch 80
    USD 6.18 Per Kg
    Pipe
    Pipe
    12" to 20" Sch 10 , Sch 20
    USD 6.83 Per Kg
    Hollow Pipe
    Hollow Pipe
    12" to 20" Sch 40 , Sch 60/80
    USD 6.50 Per Kg

    Stainless Steel 347 Round Pipe
    Round Pipe
    Sml 1" to 4" Sch 10
    USD 6.91 Per Kg
    22cr Stainless Steel 347 Square Pipe
    Square Pipe
    Sml 1" to 4" Sch 40
    USD 8.49 Per Kg
    Stainless Steel 347 stainless steel pipe Rectangular Pipe
    stainless Rectangular Pipe
    Sml 1" to 4" Sch 80
    USD 7.25 Per Kg
    Alloy Stainless Steel 347 Custom Pipe
    Custom Pipe
    Sml 1" to 4" Sch 160
    USD 7.47 Per Kg

    Cold Drawn Stainless Steel 347 Pipes
    Cold Drawn Seamless Pipe
    Sml 6" to 10" Sch 10
    USD 10.92 Per Kg
    Thick Wall Alloy Stainless Steel 347 Pipe
    Thick Wall Pipe
    Sml 6" to 10" Sch 40
    USD 12.66 Per Kg
    Schedule 5S Stainless Steel 347 Pipe
    Schedule 5S Pipe
    SCH 5, 10, 40, 80, 160, XXH
    USD 13.60 Per Kg
    Schedule 40 Stainless Steel 347 Pipe
    Schedule 40 Pipe
    SCH10 (.188), SCH40 (.375)
    USD 11.99 Per Kg

    Stainless Steel 347 Stainless Steel Polished Pipe
    Stainless Polished Pipe
    SCH-40 (.375)
    USD 15.66 Per Kg
    Stainless Steel 347 Electropolished Pipe
    Electropolished Pipe
    3 1/2" IPS( 4.000"O. D.)
    USD 13.36 Per Kg
    Stainless Steel 347 Exhaust Pipe
    Exhaust Pipe
    8 ” IPS(8.625"O. D.)
    USD 14.60 Per Kg
    Thin Wall Stainless Steel 347 stainless steel pipe Pipe
    Thin Wall stainless steel Pipe
    18" IPS (18.000"O. D.)
    USD 15.06 Per Kg



    Applications :

    These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

    application of silicon steel

    Packaging Used By Us :

    packaging and uses of silicon steel

    We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.


    Testing Used By Us :

    To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.

    Testing Used By Silicon steel
