Siliconsteel is a leading manufacturer and supplier of Duplex 2205 /31803 Flanges. We make flanges using various metals and alloys. We use UNS 31803 and UNS 32205, respectively, in Duplex Material. Duplex 31803 is the most common grade used in duplex containing 4% molybdenum, 25% chrome, and 7% nickel alloy. It has high mechanical strength and provides excellent resistance to stress cracking, chloride corrosion, and cracking. Duplex 32205 consists of 22% chromium, 3% molybdenum and 5-6% nickel. Two phases of corroded metal, ideal for applications requiring excellent resistance to corrosion and strength.

Ferritic-Austenitic Steel grades 32205 and 31803 are suitable in many applications and operations where superior corrosion resistance is needed. Duplex S31803 / S32205 Flanges is the best standard we sell in the world market. Such flanges are manufactured in many specializations such as class, size range, regular, finishing on surfaces, weight, the thickness of the sheet, and surface finish. We also supply custom flanges according to customer requirements. To support applications such as petrochemicals, power generation, gas processing, chemical equipment, pharmaceutical, and seawater, we supply a wider variety of our high-quality S31803 / s32205, flanges. Our Flanges Duplex S31803 / S32205 are the most common items on the market. Thanks to the price and characteristics of Flanges, they are available to our customers on request.

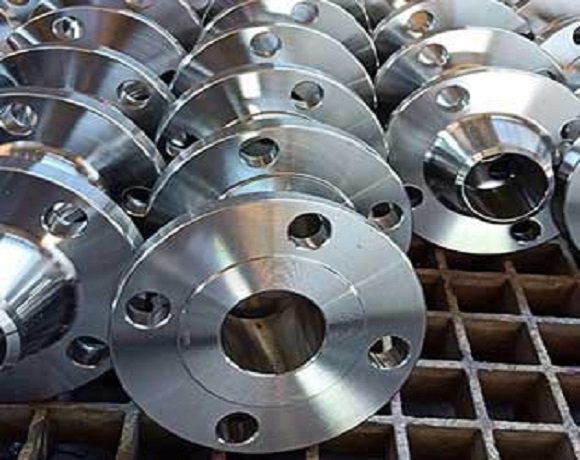

duplex steel 2205 uns 31803 flanges supplier stockist

ASTM A182 Duplex Steel Flanges, UNS S31803 Orifice Flange Suppliers, Class 300# Duplex Steel UNS S31803 Lap Joint Flanges, 2205 Duplex Slip On Flanges Dealer, BS4504 Duplex UNS S31803 Tongue & Groove Flanges, Distributors of ASME SA182 Duplex Steel UNS S31803 Blind Flanges in Mumbai.

Our Duplex S31803 / S32205 Flanges characteristics include high strength, high solderability, workability, quality control, chloride stress cracking resistance, corrosion in general, chloride flaking, and slit corrosion, etc. We aim to fulfill the needs and desires of our customers. In the defined time, we concentrate on providing the right solution for our customers. Duplex 2205-s31803 flanges are made up of an alloy that has a longer life and is also cost-effective. Ferritic and Austenitic both are the base that makes up this alloy. There, they bear all the properties that these two elements possess. These flanges have high tensile strength. In addition to the strength, it is also highly resistant to oxidation and the environment that can cause corrosion.

Duplex 2205-s31803 flanges also have excellent resistance to corrosion in environments containing various acidic elements such as sulphuric acid and chlorine. These flanges can stand a temperature up to 300 degrees celsius. If the temperature is raised above the given temperature, it might lead to the embrittlement of the flanges. These also have the property of being ductile and can even show this property at a low temperature. These flanges can also be made harder by undergoing heat treatment. As these flanges have a higher content of chromium than the other stainless steel alloys and can also withstand chlorine, it is widely used in marine and off the shore environments.

Specification :

Specifications	ASTM A182, ASME SA182
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2" - 48"
Class / Pressure Rating	150 Class, 300 Class, F92 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Types of Duplex 2205 Flanges :

ASTM A182 Duplex 2205 Blind Flanges Saf 2205 class 300# Blind Flanges	Werkstoff Nr. 1.4462 class 150# Blind Flanges ASTM A476 UNS S31803 Blind Flanges	ASTM A476 UNS S32205 Blind Flanges 2205 Duplex Steel Blind Flanges DIN 1.4462 Blind Flanges
ASTM A182 Duplex 2205 BLRF Flanges Saf 2205 class 300# BLRF Flanges	Werkstoff Nr. 1.4462 class 150# BLRF Flanges ASTM A476 UNS S31803 BLRF Flanges	ASTM A476 UNS S32205 BLRF Flanges 2205 Duplex Steel BLRF Flanges DIN 1.4462 BLRF Flanges
ASTM A182 Duplex 2205 Flat Flanges Saf 2205 class 300# Flat Flanges	Werkstoff Nr. 1.4462 class 150# Flat Flanges ASTM A476 UNS S31803 Flat Flanges	ASTM A476 UNS S32205 Flat Flanges 2205 Duplex Steel Flat Flanges DIN 1.4462 Flat Flanges
ASTM A182 Duplex 2205 Lap-joint Flanges Saf 2205 class 300# Lap-joint Flanges	Werkstoff Nr. 1.4462 class 150# Lap-joint Flanges ASTM A476 UNS S31803 Lap-joint Flanges	ASTM A476 UNS S32205 Lap-joint Flanges 2205 Duplex Steel Lap-joint Flanges DIN 1.4462 Lap-joint Flanges
ASTM A182 Duplex 2205 Nipolet Flanges Saf 2205 class 300# Nipolet Flanges	Werkstoff Nr. 1.4462 class 150# Nipolet Flanges ASTM A476 UNS S31803 Nipolet Flanges	ASTM A476 UNS S32205 Nipolet Flanges 2205 Duplex Steel Nipolet Flanges DIN 1.4462 Nipolet Flanges
ASTM A182 Duplex 2205 Reducing Flanges Saf 2205 class 300# Reducing Flanges	Werkstoff Nr. 1.4462 class 150# Reducing Flanges ASTM A476 UNS S31803 Reducing Flanges	ASTM A476 UNS S32205 Reducing Flanges 2205 Duplex Steel Reducing Flanges DIN 1.4462 Reducing Flanges
ASTM A182 Duplex 2205 SORF Flanges Saf 2205 class 300# SORF Flanges	Werkstoff Nr. 1.4462 class 150# SORF Flanges ASTM A476 UNS S31803 SORF Flanges	ASTM A476 UNS S32205 SORF Flanges 2205 Duplex Steel SORF Flanges DIN 1.4462 SORF Flanges
ASTM A182 Duplex 2205 Spacer Ring Flanges Saf 2205 class 300# Spacer Ring Flanges	Werkstoff Nr. 1.4462 class 150# Spacer Ring Flanges ASTM A476 UNS S31803 Spacer Ring Flanges	ASTM A476 UNS S32205 Spacer Ring Flanges 2205 Duplex Steel Spacer Ring Flanges DIN 1.4462 Spacer Ring Flanges
ASTM A182 Duplex 2205 SWRF Flanges Saf 2205 class 300# SWRF Flanges	Werkstoff Nr. 1.4462 class 150# SWRF Flanges ASTM A476 UNS S31803 SWRF Flanges	ASTM A476 UNS S32205 SWRF Flanges 2205 Duplex Steel SWRF Flanges DIN 1.4462 SWRF Flanges
ASTM A182 Duplex 2205 Spectacle Flanges Saf 2205 class 300# Spectacle Flanges	Werkstoff Nr. 1.4462 class 150# Spectacle Flanges ASTM A476 UNS S31803 Spectacle Flanges	ASTM A476 UNS S32205 Spectacle Flanges 2205 Duplex Steel Spectacle Flanges DIN 1.4462 Spectacle Flanges
ASTM A182 Duplex 2205 WNRF Flanges Saf 2205 class 300# WNRF Flanges	Werkstoff Nr. 1.4462 class 150# WNRF Flanges ASTM A476 UNS S31803 WNRF Flanges	ASTM A476 UNS S32205 WNRF Flanges 2205 Duplex Steel WNRF Flanges DIN 1.4462 WNRF Flanges
ASTM A182 Duplex 2205 Weldo Flanges Saf 2205 class 300# Weldo Flanges	Werkstoff Nr. 1.4462 class 150# Weldo Flanges ASTM A476 UNS S31803 Weldo Flanges	ASTM A476 UNS S32205 Weldo Flanges 2205 Duplex Steel Weldo Flanges DIN 1.4462 Weldo Flanges

Equivalent Grade :

STANDARD	UNS	WERKSTOFF NR.
Duplex 2205/ S31803	S31803	1.4462

Chemical Composition :

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
Duplex Steel S31803	0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	22 – 23	3 – 3.5	4.50 – 6.50	0.14 – 0.20	63.72 min
Duplex Steel S32205	0.030 max	2.00 max	1.00 max	0.030 max	0.020 max	21 – 23	2.50 - 3.50	4.50 – 6.50	0.8 – 0.20	63.54 min

Dimensions of Duplex 2205 Flanges

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Duplex 2205 Flanges :

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Duplex Stainless Steel Flange Pressure Rating :

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Temp, ℃	Pressure-temperature rating for ASME B16.5 by class, bar
Temp, ℃	150	300	400	600	900	1500	2500
-29 to 38	20.0	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	50.7	67.5	101.3	152.0	253.3	422.2
150	15.8	45.9	61.2	91.9	137.8	229.6	382.7
200	13.8	42.7	56.9	85.3	128.0	213.3	355.4
250	12.1	40.5	53.9	80.9	121.4	202.3	337.2
300	10.2	38.9	51.8	77.7	116.6	194.3	323.8

Tolerance of Duplex Ss Flanges

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

Prices of Duplex 2205 Flanges :

Duplex 2205 Plate Flange
US $ 5.58-5.88 / kg

ASTM A182 Duplex 2205 Ring Joint Flange
US $ 0.5-20 / Piece

ASME SA182 Groove Flanges
US $ 5.06-6.39 / Piece

UNS S31803 Reducing Flanges
US $ 1 - 3 / Piece

Saf 2205 Threaded Flange
US $ 0.2-20 / Piece

Werkstoff Nr. 1.4462 Lap Joint Flange
US $ 1000 - 3000 / Ton

UNS S32205 Long WN Flange
US $ 5 - 10 / Piece

Duplex 2205 Spectacle Blind Flange
US $ 1 - 7 / Piece

ASTM A182 Duplex 2205 Slip On Flange
US $ 5 - 12 / Piece

ASME SA182 Socket Weld Flange
US $0.5-1000 / Piece

UNS S31803 Blind Flange
US $300-500 / Ton

Saf 2205 Welding Neck Flange
US $1-900 / Piece

Werkstoff Nr. 1.4462 Raised Face Flange
US $0.5-1000 / Piece

UNS S32205 Male & Female Flange
US $1-300 / Piece

Duplex 2205 Weldo flange
US $ 5.58-5.88 / kg

ASME SA182 Puddle Flanges
US $ 0.5-20 / Piece

UNS S31803 Spacer Flange
US $ 5.06-6.39 / Piece

ASTM A182 Duplex 2205 High Hub Blind Flange
US $ 5 - 10 / Piece

Saf 2205 Forged Flange
US $300-500 / Ton

Werkstoff Nr. 1.4462 Bleed Rings
US $0.5-1000 / Piece

UNS S32205 Orifice Flange
US $ 0.2-20 / Piece

Duplex 2205 Square Flange
US $ 5 - 10 / Piece

ASTM A182 Duplex 2205 Nipo flange
US $ 1000 - 3000 / Ton

UNS S31803 Spade Flange
US $300-500 / Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
