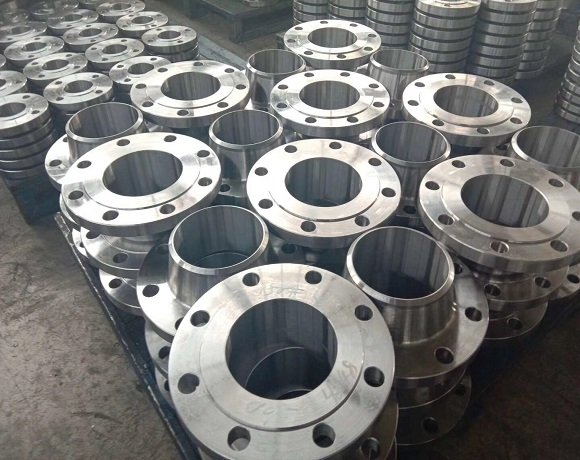

Siliconsteel is a manufacturer of Incoloy 825 Flanges. We have built a solid customer base and confidence through our offerings. We import material from an authorized manufacturer. For various industrial operations, our product is useful.The raw material used for Incoloy 825 Flanges production strengthens the finished product. It is also resistant to specific oxidizing agents and environmental conditions. Incoloy 825 Flanges, helps to break down stress and corrosion. The raw material offers the finished product outstanding welding capability. Only after numerous machining processes, we can produce the best product.

Incoloy 825 flanges are available for continually changing customer demands in various sizes and shapes. Flanges Incoloy 825 is a crucial engineering commodity. Such Incoloy 825 flanges are stabilized and treated so that even after development, it remains intact.We do the testing of raw materials. To ensure our product authentication, we use the third-party inspection report. Our health and quality experts always pass on the finished product before being delivered to customers via strict quality analyses. We test the hardness of the substance, flattening properties, micro, macro elements, etc.

Alloy 2.4858 Socket weld Flanges, ASME SB564 Incoloy 825 Flanges, Nickel 825 Reducing Flange Leading Stockholder in Mumbai India, Incoloy® Alloy 825 Spectacle Blind Flange, Incoloy 825 Threaded Flanges, Incoloy DIN 2.4858 Flanges, Incoloy 825 Blind Flanges, Alloy N08825 Forged Flanges, Alloy 825 Welding Neck Flange, Incoloy® Alloy N08825 Tongue and Groove Flange, Incoloy 2.4858 Ring Type Joint Flange, UNS N08825 Plate Flange, Alloy 2.4858 Screwed Flange, Incoloy N08825 Long Weld Neck Flanges in India.

In the company's view, the product often significantly impacts sales with its quality control data. So, in commercial invoices such as HS code, net weight, and gross weight, amount, marks and numbers, etc. We add several details. For that particular product, we keep the record of multiple tests and procedures. Incoloy 825 Flanges plays a significant role in developing petrochemical, oil, gas, and power where liquid transport is required. We work with safety and efficiency.

Specification :

Specifications	ASTM B425, B564 / ASME SB425, SB564
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2" - 48"
Class / Pressure Rating	150 Class, 300 Class, F92 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Types of Incoloy 825 Flanges :

ASTM B425 Incoloy 825 Blind Flanges Werkstoff Nr. 2.4858 Blind Flanges ASTM B564 UNS N08825 Blind Flanges	BS Na 16 Incoloy 825 class 300# Blind Flanges EN Nicr21Mo Incoloy 825 class 150# Blind Flanges	Afnor Nfe30C20Dum Blind Flanges Gost Эп703 Blind Flanges JIS Ncf 825 Blind Flanges
ASTM B425 Incoloy 825 BLRF Flanges Werkstoff Nr. 2.4858 BLRF Flanges ASTM B564 UNS N08825 BLRF Flanges	BS Na 16 Incoloy 825 class 300# BLRF Flanges EN Nicr21Mo Incoloy 825 class 150# BLRF Flanges	Afnor Nfe30C20Dum BLRF Flanges Gost Эп703 BLRF Flanges JIS Ncf 825 BLRF Flanges
ASTM B425 Incoloy 825 Flat Flanges Werkstoff Nr. 2.4858 Flat Flanges ASTM B564 UNS N08825 Flat Flanges	BS Na 16 Incoloy 825 class 300# Flat Flanges EN Nicr21Mo Incoloy 825 class 150# Flat Flanges	Afnor Nfe30C20Dum Flat Flanges Gost Эп703 Flat Flanges JIS Ncf 825 Flat Flanges
ASTM B425 Incoloy 825 Lap-joint Flanges Werkstoff Nr. 2.4858 Lap-joint Flanges ASTM B564 UNS N08825 Lap-joint Flanges	BS Na 16 Incoloy 825 class 300# Lap-joint Flanges EN Nicr21Mo Incoloy 825 class 150# Lap-joint Flanges	Afnor Nfe30C20Dum Lap-joint Flanges Gost Эп703 Lap-joint Flanges JIS Ncf 825 Lap-joint Flanges
ASTM B425 Incoloy 825 Nipolet Flanges Werkstoff Nr. 2.4858 Nipolet Flanges ASTM B564 UNS N08825 Nipolet Flanges	BS Na 16 Incoloy 825 class 300# Nipolet Flanges EN Nicr21Mo Incoloy 825 class 150# Nipolet Flanges	Afnor Nfe30C20Dum Nipolet Flanges Gost Эп703 Nipolet Flanges JIS Ncf 825 Nipolet Flanges
ASTM B425 Incoloy 825 Reducing Flanges Werkstoff Nr. 2.4858 Reducing Flanges ASTM B564 UNS N08825 Reducing Flanges	BS Na 16 Incoloy 825 class 300# Reducing Flanges EN Nicr21Mo Incoloy 825 class 150# Reducing Flanges	Afnor Nfe30C20Dum Reducing Flanges Gost Эп703 Reducing Flanges JIS Ncf 825 Reducing Flanges
ASTM B425 Incoloy 825 SORF Flanges Werkstoff Nr. 2.4858 SORF Flanges ASTM B564 UNS N08825 SORF Flanges	BS Na 16 Incoloy 825 class 300# SORF Flanges EN Nicr21Mo Incoloy 825 class 150# SORF Flanges	Afnor Nfe30C20Dum SORF Flanges Gost Эп703 SORF Flanges JIS Ncf 825 SORF Flanges
ASTM B425 Incoloy 825 Spacer Ring Flanges Werkstoff Nr. 2.4858 Spacer Ring Flanges ASTM B564 UNS N08825 Spacer Ring Flanges	BS Na 16 Incoloy 825 class 300# Spacer Ring Flanges EN Nicr21Mo Incoloy 825 class 150# Spacer Ring Flanges	Afnor Nfe30C20Dum Spacer Ring Flanges Gost Эп703 Spacer Ring Flanges JIS Ncf 825 Spacer Ring Flanges
ASTM B425 Incoloy 825 Spacer Ring Flanges Werkstoff Nr. 2.4858 Spacer Ring Flanges ASTM B564 UNS N08825 Spacer Ring Flanges	BS Na 16 Incoloy 825 class 300# Spacer Ring Flanges EN Nicr21Mo Incoloy 825 class 150# Spacer Ring Flanges	Afnor Nfe30C20Dum Spacer Ring Flanges Gost Эп703 Spacer Ring Flanges JIS Ncf 825 Spacer Ring Flanges
ASTM B425 Incoloy 825 Spectacle Flanges Werkstoff Nr. 2.4858 Spectacle Flanges ASTM B564 UNS N08825 Spectacle Flanges	BS Na 16 Incoloy 825 class 300# Spectacle Flanges EN Nicr21Mo Incoloy 825 class 150# Spectacle Flanges	Afnor Nfe30C20Dum Spectacle Flanges Gost Эп703 Spectacle Flanges JIS Ncf 825 Spectacle Flanges
ASTM B425 Incoloy 825 WNRF Flanges Werkstoff Nr. 2.4858 WNRF Flanges ASTM B564 UNS N08825 WNRF Flanges	BS Na 16 Incoloy 825 class 300# WNRF Flanges EN Nicr21Mo Incoloy 825 class 150# WNRF Flanges	Afnor Nfe30C20Dum WNRF Flanges Gost Эп703 WNRF Flanges JIS Ncf 825 WNRF Flanges
ASTM B425 Incoloy 825 Weldo Flanges Werkstoff Nr. 2.4858 Weldo Flanges ASTM B564 UNS N08825 Weldo Flanges	BS Na 16 Incoloy 825 class 300# Weldo Flanges EN Nicr21Mo Incoloy 825 class 150# Weldo Flanges	Afnor Nfe30C20Dum Weldo Flanges Gost Эп703 Weldo Flanges JIS Ncf 825 Weldo Flanges

Equivalent Grade :

Grade	UNS No	Old British		Euronorm		GOST	Japanese JIS
		BS	En	No	AFNOR
Incoloy 825	N08825	NA 16	NiCr21Mo	2.4858	NFE30C20DUM	ЭП703	NCF 825

Chemical Composition :

Grade		C	Mn	Si	Fe	S	Cr	Cu	Ti
825	min.	–	–	–	22.0	–	19.5	1.5	0.6
825	max.	0.05	1.0	0.5	–	0.015	23.5	3.0	1.2

Dimensions of Incoloy 825 Flanges

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Incoloy 825 Flanges :

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Duplex Stainless Steel Flange Pressure Rating :

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Temp, ℃	Pressure-temperature rating for ASME B16.5 by class, bar
Temp, ℃	150	300	400	600	900	1500	2500
-29 to 38	20.0	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	50.7	67.5	101.3	152.0	253.3	422.2
150	15.8	45.9	61.2	91.9	137.8	229.6	382.7
200	13.8	42.7	56.9	85.3	128.0	213.3	355.4
250	12.1	40.5	53.9	80.9	121.4	202.3	337.2
300	10.2	38.9	51.8	77.7	116.6	194.3	323.8

Tolerance of Duplex Ss Flanges

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

Prices of Incoloy 825 Flanges :

Plate Flange
US $ 5.58-5.88 / kg

Ring Joint Flange
US $ 0.5-20 / Piece

Tongue & Groove Flanges
US $ 5.06-6.39 / Piece

Reducing Flanges
US $ 1 - 3 / Piece

Threaded Flange
US $ 0.2-20 / Piece

Lap Joint Flange
US $ 1000 - 3000 / Ton

Long WN Flange
US $ 5 - 10 / Piece

Spectacle Blind Flange
US $ 1 - 7 / Piece

Slip On Flange
US $ 5 - 12 / Piece

Socket Weld Flange
US $0.5-1000 / Piece

Blind Flange
US $300-500 / Ton

Welding Neck Flange
US $1-900 / Piece

Raised Face Flange
US $0.5-1000 / Piece

Male & Female Flange
US $1-300 / Piece

Weldoflange
US $ 5.58-5.88 / kg

Puddle Flanges
US $ 0.5-20 / Piece

Spacer Flange
US $ 5.06-6.39 / Piece

High Hub Blind Flange
US $ 5 - 10 / Piece

Forged Flange
US $300-500 / Ton

Bleed Rings
US $0.5-1000 / Piece

Orifice Flange
US $ 0.2-20 / Piece

Square Flange
US $ 5 - 10 / Piece

Nipo flange
US $ 1000 - 3000 / Ton

Spade Flange
US $300-500 / Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
