Silicon steel is the leading producer, suppliers, and Manufacturer of Super Duplex Steel Zeron 100 Flanges. Flanges give assured resistance to corrosion in different mineral acids, such as sulfuric acid and hydrochloric acid. Super duplex pipe flanges are designed for rough use. It is used to deliver excellent protection to pitting and cravings. Our Zeron 100 Slip Super Duplex on Flanges is made with an initial diameter slightly larger than the tubing's outside diameter.

Super Duplex UNS S32760 Flanges are available in any size and dimension. Super Duplex Steel Zeron 100 Blind Flanges are used to monitor gas and liquid flow into a tube or pipe and are mounted at the end of the tube and tanks or pressure vessel fences. Plate Flanges are mainly used in the Petrochemical or Pipe Engineering project or public appliances.

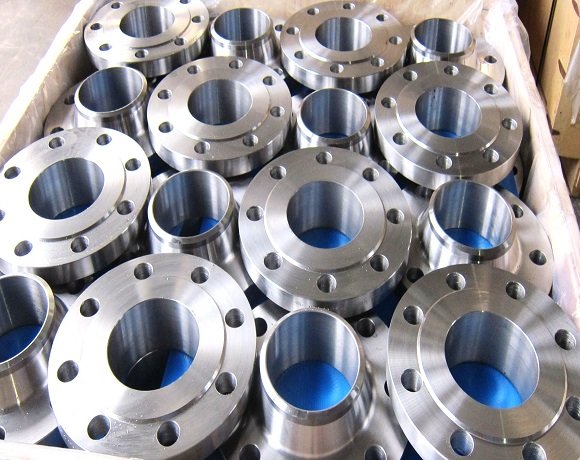

duplex steel zeron 100 UNS 32760 flanges supplier stockist

Werkstoff Nr. 1.4501 Expander Flanges stockiest, Afnor Z3Cnduw25-07Az Square Flanges trader, Super Duplex UNS S32760 Loose Flanges retailer, UNS S32760 Long Weld Neck Flanges dealer, UNS S32760 Reducing Flanges exporter, Super Duplex UNS S32760 Groove & Tongue Flanges supplier.

Threaded flanges provide specific features to slip flanges; however, they have tapered threads, and its most important advantage is that it can be installed without forging. The threaded flanges have a small diameter and are used in high-pressure applications. The outstanding catalog of Flanges Fittings is available to discover the latest items at reasonable prices. Take a tour of the entire collection for the best quality on our official website. Let us know what you need, and we will respond to your needs.

From material selection to the final distribution of Flanges, our quality assurance team supervises the operation. With state of the art equipment, new machinery, and unique methods, we have upgraded our production business. Following both international standards, we produce our product. Super Duplex Steel Zeron 100-32760 flanges comprises 7 percent nickel, 25 percent chromium, and 3.6 percent molybdenum. Along with these base elements, it also has an addition of tungsten as well as copper. The composition of this alloy consists of equal amounts of ferric and austenitic contents.

Specification :

Specifications	ASTM A182, ASME SA182
Dimensions	ANSI / ASME B16.5, B16.47 Series A & B, B.16.48, BS4504, BS10, DIN, EN-1092, MSS SP44
Size	1/2" - 48"
Class / Pressure Rating	150 Class, 300 Class, F92 Class, 900 Class, 1500 Class, 2500 Class, PN6, PN10, PN16, PN25, PN40, PN64, etc.
Form	Slip on Flanges (SORF), Threaded Flanges, Weld neck Flanges (WNRF), Blind Flanges, Socket weld Flanges, Lap Joint Flanges, Ring Type Joint Flanges, Spectacle Blind Flanges, Spacer Ring Flanges, Long weld Neck Flanges, Nipo Flange, Nipolet Flanges, Plate Flanges, Flat Flange, Orifice Flanges, Forged Flanges
Flange Face Type	Round, Square, Hex (A/F), Rectangle, Billet, Ingot, Forging etc
Condition	Flat Face (FF), Raised Face (RF), Ring Type Joint(RTJ)

Types of Super Duplex Steel Zeron 100 Flanges :

ASTM A182 Super Duplex S32760 Blind Flanges Werkstoff Nr. 1.4501 class 300# Blind Flanges	UNS S32760 class 150# Blind Flanges Afnor Z3Cnduw25-07Az Blind Flanges	Din 1.4501 Blind Flanges Super Duplex 32760 Blind Flanges ASTM A479 Super Duplex 32760 Blind Flanges
ASTM A182 Super Duplex S32760 BLRF Flanges Werkstoff Nr. 1.4501 class 300# BLRF Flanges	UNS S32760 class 150# BLRF Flanges Afnor Z3Cnduw25-07Az BLRF Flanges	Din 1.4501 BLRF Flanges Super Duplex 32760 BLRF Flanges ASTM A479 Super Duplex 32760 BLRF Flanges
ASTM A182 Super Duplex S32760 Flat Flanges Werkstoff Nr. 1.4501 class 300# Flat Flanges	UNS S32760 class 150# Flat Flanges Afnor Z3Cnduw25-07Az Flat Flanges	Din 1.4501 Flat Flanges Super Duplex 32760 Flat Flanges ASTM A479 Super Duplex 32760 Flat Flanges
ASTM A182 Super Duplex S32760 Flat Flanges Werkstoff Nr. 1.4501 class 300# Flat Flanges	UNS S32760 class 150# Flat Flanges Afnor Z3Cnduw25-07Az Flat Flanges	Din 1.4501 Flat Flanges Super Duplex 32760 Flat Flanges ASTM A479 Super Duplex 32760 Flat Flanges
ASTM A182 Super Duplex S32760 Nipolet Flanges Werkstoff Nr. 1.4501 class 300# Nipolet Flanges	UNS S32760 class 150# Nipolet Flanges Afnor Z3Cnduw25-07Az Nipolet Flanges	Din 1.4501 Nipolet Flanges Super Duplex 32760 Nipolet Flanges ASTM A479 Super Duplex 32760 Nipolet Flanges
ASTM A182 Super Duplex S32760 Reducing Flanges Werkstoff Nr. 1.4501 class 300# Reducing Flanges	UNS S32760 class 150# Reducing Flanges Afnor Z3Cnduw25-07Az Reducing Flanges	Din 1.4501 Reducing Flanges Super Duplex 32760 Reducing Flanges ASTM A479 Super Duplex 32760 Reducing Flanges
ASTM A182 Super Duplex S32760 SORF Flanges Werkstoff Nr. 1.4501 class 300# SORF Flanges	UNS S32760 class 150# SORF Flanges Afnor Z3Cnduw25-07Az SORF Flanges	Din 1.4501 SORF Flanges Super Duplex 32760 SORF Flanges ASTM A479 Super Duplex 32760 SORF Flanges
ASTM A182 Super Duplex S32760 Spacer Ring Flanges Werkstoff Nr. 1.4501 class 300# Spacer Ring Flanges	UNS S32760 class 150# Spacer Ring Flanges Afnor Z3Cnduw25-07Az Spacer Ring Flanges	Din 1.4501 Spacer Ring Flanges Super Duplex 32760 Spacer Ring Flanges ASTM A479 Super Duplex 32760 Spacer Ring Flanges
ASTM A182 Super Duplex S32760 SWRF Flanges Werkstoff Nr. 1.4501 class 300# SWRF Flanges	UNS S32760 class 150# SWRF Flanges Afnor Z3Cnduw25-07Az SWRF Flanges	Din 1.4501 SWRF Flanges Super Duplex 32760 SWRF Flanges ASTM A479 Super Duplex 32760 SWRF Flanges
ASTM A182 Super Duplex S32760 Spectacle Flanges Werkstoff Nr. 1.4501 class 300# Spectacle Flanges	UNS S32760 class 150# Spectacle Flanges Afnor Z3Cnduw25-07Az Spectacle Flanges	Din 1.4501 Spectacle Flanges Super Duplex 32760 Spectacle Flanges ASTM A479 Super Duplex 32760 Spectacle Flanges
ASTM A182 Super Duplex S32760 WNRF Flanges Werkstoff Nr. 1.4501 class 300# WNRF Flanges	UNS S32760 class 150# WNRF Flanges Afnor Z3Cnduw25-07Az WNRF Flanges	Din 1.4501 WNRF Flanges Super Duplex 32760 WNRF Flanges ASTM A479 Super Duplex 32760 WNRF Flanges
ASTM A182 Super Duplex S32760 Weldo Flanges Werkstoff Nr. 1.4501 class 300# Weldo Flanges	UNS S32760 class 150# Weldo Flanges Afnor Z3Cnduw25-07Az Weldo Flanges	Din 1.4501 Weldo Flanges Super Duplex 32760 Weldo Flanges ASTM A479 Super Duplex 32760 Weldo Flanges

Equivalent Grade :

STANDARD	UNS	WERKSTOFF NR.
Zeron 100	S32760	1.4501

Chemical Composition :

Grade	C	Mn	Si	P	S	Cr	Mo	Ni	N	Fe
S32760	0.05 max	1.00 max	1.00 max	0.030 max	0.010 max	24.00 – 26.00	3.00 – 4.00	6.00 – 8.00	0.20 – 0.30	57.61 min

Dimensions of Super Duplex Steel Zeron 100 Flanges

Nominal Size	Outside Diameter (OD)	Min. Thickness (T)	RF Dia. (R)	No. of Bolt Holes	Diameter of Holes	Bolt Circle (BC)	SO Bore ID (SB)	WN Bore ID (WB)	Dia. Hub Base (HB)	Dia. of Hub Top (HT)	SO LTH (SL)	WN LTH (WL)
¹⁄₂	3.50	0.38	1.38	4	0.62	2.38	0.88	0.62	1.19	0.84	0.56	1.81
³⁄₄	3.88	0.44	1.69	4	0.62	2.75	1.09	0.82	1.50	1.05	0.56	2.00
1	4.25	0.50	2.00	4	0.62	3.12	1.36	1.05	1.94	1.32	0.62	2.12
1¹⁄₄	4.62	0.56	2.50	4	0.62	3.50	1.70	1.38	2.31	1.66	0.75	2.19
1¹⁄₂	5.00	0.62	2.88	4	0.62	3.88	1.95	1.61	2.56	1.90	0.81	2.38
2	6.00	0.69	3.62	4	0.75	4.75	2.44	2.07	3.06	2.38	0.94	2.44
2¹⁄₂	7.00	0.81	4.12	4	0.75	5.50	2.94	2.47	3.56	2.88	1.06	2.69
3	7.50	0.88	5.00	4	0.75	6.00	3.57	3.07	4.25	3.50	1.12	2.69
3¹⁄₂	8.50	0.88	5.50	8	0.75	7.00	4.07	3.55	4.81	4.00	1.19	2.75
4	9.00	0.88	6.19	8	0.75	7.50	4.57	4.03	5.31	4.50	1.25	2.94
5	10.00	0.88	7.31	8	0.88	8.50	5.66	5.05	6.44	5.56	1.38	3.44
6	11.00	0.94	8.50	8	0.88	9.50	6.72	6.07	7.56	6.63	1.50	3.44
8	13.50	1.06	10.62	8	0.88	11.75	8.72	7.98	9.69	8.63	1.69	3.94
10	16.00	1.12	12.75	12	1.00	14.25	10.88	10.02	12.00	10.75	1.88	3.94
12	19.00	1.19	15.00	12	1.00	17.00	12.88	12.00	14.38	12.75	2.12	4.44
14	21.00	1.31	16.25	12	1.12	18.75	14.14	13.25	15.75	14.00	2.19	4.94
16	23.50	1.38	18.50	16	1.12	21.25	16.16	15.25	18.00	16.00	2.44	4.94
18	25.00	1.50	21.00	16	1.25	22.75	18.18	17.25	19.88	18.00	2.62	5.44
20	27.50	1.62	23.00	20	1.25	25.00	20.20	19.25	22.00	20.00	2.81	5.62
22	29.50	1.75	25.25	20	1.38	27.25	22.22	21.25	24.25	22.00	3.07	5.82
24	32.00	1.81	27.25	20	1.38	29.50	24.25	23.25	26.12	24.00	3.19	5.94

Weight Chart of Super Duplex Steel Zeron 100 Flanges :

Standard	Class	Diameter	Bolt Circle Diameter	Number of Bolts	Bolt Size	Diameter of Bolt Hole
AS4087	PN14	95	67	4	M12	14
AS 2129	Table C	95	67	4	13	14
	Table D	95	67	4	13	14
	Table E	95	67	4	13	14
	Table F	95	67	4	13	14
	Table H	114	83	4	16	17
	Table J	114	83	4	16	17
ANSI B16.5	ANSI 150	89	60	4	13	16
	ANSI 300	95	67	4	13	16
	ANSI 600	95	67	4	13	16
	ANSI 900	121	83	4	19	22
	ANSI 1500	121	83	4	19	22
ISO 7005 (DIN)	PN6	80	55	4	M10	11
	PN10	95	65	4	M12	14
	PN16	95	65	4	M12	14
	PN20	90	60.5	4	M14	16
	PN25	95	65	4	M12	14
	PN40	95	65	4	M12	14

Duplex Stainless Steel Flange Pressure Rating :

Temp. ℃	Pressure-temperature rating for ASME B16.47 by class, bar
Temp. ℃	75	150	300	400	600	900
-29 to 38	10.0	20.0	51.7	68.9	103.4	155.1
50	9.8	19.5	51.7	68.9	103.4	155.1
100	8.8	17.7	50.7	67.5	101.3	152.0
150	7.9	15.8	45.9	61.2	91.9	137.8
200	6.9	13.8	42.7	56.9	85.3	128.0
250	6.0	12.1	40.5	53.9	80.9	121.4
300	5.1	10.2	38.9	51.8	77.7	116.6

Temp, ℃	Pressure-temperature rating for ASME B16.5 by class, bar
Temp, ℃	150	300	400	600	900	1500	2500
-29 to 38	20.0	51.7	68.9	103.4	155.1	258.6	430.9
50	19.5	51.7	68.9	103.4	155.1	258.6	430.9
100	17.7	50.7	67.5	101.3	152.0	253.3	422.2
150	15.8	45.9	61.2	91.9	137.8	229.6	382.7
200	13.8	42.7	56.9	85.3	128.0	213.3	355.4
250	12.1	40.5	53.9	80.9	121.4	202.3	337.2
300	10.2	38.9	51.8	77.7	116.6	194.3	323.8

Tolerance of Duplex Ss Flanges

Outside Diameter ≤ 24 = 1.6 mm \| > 24 = ± 3.2 mm	Inside Diameter not applicable
Diameter of Contact Face 1.6 mm Raised Face = ± 0.8 mm 6.35 mm Raised Face, Tongue & Groove / Male-Female = ± 0.4 mm	Outside Diameter of Hub ≤ 12 = + 2.4 mm / – 1.6 mm \| ≥ 14 = ± 3.2 mm
Diameter of Counterbore not applicable	Drilling Bolt Circle = 1.6 mm \| Bolt Hole Spacing = ± 0.8 mm Eccentricity of Bolt Circle with Respect to Facing ≤ 2½ = 0.8 mm max. \| ≥ 3 = 1.6 mm max.
Thickness ≤ 18 = + 3.2 mm / – 0 \| ≥ 20 = + 4.8 mm / – 0	Length thru Hub ≤ 18 = + 3.2 mm / – 0.8 mm \| ≥ 20 = + 4.8 mm / – 1.6 mm

Prices of Super Duplex Steel Zeron 100 Flanges :

Super Duplex S32760 Plate Flange
US $ 5.58-5.88 / kg

ASME SA182 Ring Joint Flange
US $ 0.5-20 / Piece

Werkstoff Nr. 1.4501 Tongue & Groove Flanges
US $ 5.06-6.39 / Piece

ASTM A182 Super Duplex S32760 Reducing Flanges
US $ 1 - 3 / Piece

UNS S32760 Threaded Flange
US $ 0.2-20 / Piece

Afnor Z3Cnduw25-07Az Lap Joint Flange
US $ 1000 - 3000 / Ton

Din 1.4501 Long WN Flange
US $ 5 - 10 / Piece

ASME SA182 Spectacle Blind Flange
US $ 1 - 7 / Piece

Super Duplex S32760 Slip On Flange
US $ 5 - 12 / Piece

Werkstoff Nr. 1.4501 Socket Weld Flange
US $0.5-1000 / Piece

UNS S32760 Blind Flange
US $300-500 / Ton

Afnor Z3Cnduw25-07Az Welding Neck Flange
US $1-900 / Piece

Din 1.4501 Raised Face Flange
US $0.5-1000 / Piece

ASME SA182 Male & Female Flange
US $1-300 / Piece

Super Duplex S32760 Weldo flange
US $ 5.58-5.88 / kg

ASTM A182 Super Duplex S32760 Puddle Flanges
US $ 0.5-20 / Piece

Afnor Z3Cnduw25-07Az Spacer Flange
US $ 5.06-6.39 / Piece

Din 1.4501 High Hub Blind Flange
US $ 5 - 10 / Piece

Werkstoff Nr. 1.4501 Forged Flange
US $300-500 / Ton

UNS S32760 Bleed Rings
US $0.5-1000 / Piece

Super Duplex S32760 Orifice Flange
US $ 0.2-20 / Piece

ASTM A182 Super Duplex S32760 Square Flange
US $ 5 - 10 / Piece

Werkstoff Nr. 1.4501 Nipo flange
US $ 1000 - 3000 / Ton

UNS S32760 Spade Flange
US $300-500 / Ton

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
