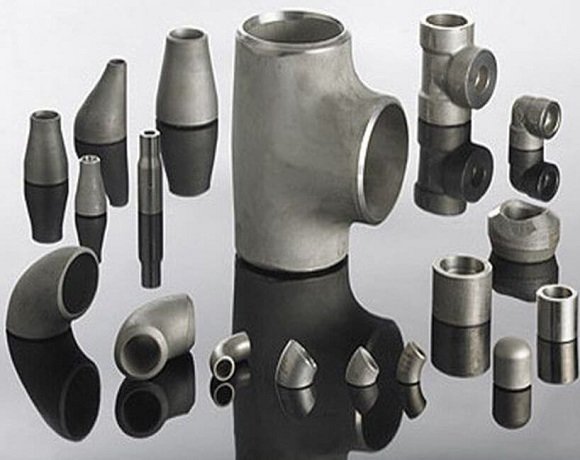

Monel K500 Buttweld Fittings

Monel Alloy Butt weld Pipe Fittings, Monel Grade K500 Butt weld Pipe Fittings Stockists in Mumbai, Alloy K500 Pipe Fittings Suppliers, Monel K-500 Equal Tee Wholesaler, UNS N05500 Monel® Alloy Butt weld Seamless Pipe Fitting, K500 Nickel Alloy Buttweld Tee Dealer, Distributors of Monel® K500 ASME SB366 Buttweld Reducer, Monel Pipe Fittings, Monel® Alloy K-500 Buttweld Fittings, ASME B16.28 K500 Monel® Alloy Butt weld Reducing Tee, K500 Monel Unequal Cross Exporters, ASTM B366 Monel K500 Pipe Elbow, K500 Monel® 45°/90°/180° Butt weld Elbow, K500 Nickel Alloy ANSI B16.9 Short & Long Radius Elbow, K500 Monel Welded Pipe Fittings Suppliers, Nickelvac® K500 Pipe Fittings.

Table of Content

• What is Monel K500 Buttweld Fittings
• Specification of Monel K500 Buttweld Fittings
• Equivalent Grade of Monel K500 Buttweld Fittings
• Chemical Composition of Monel K500 Buttweld Fittings
• Applications and Uses of Monel K500 Buttweld Fittings
• Packaging of Monel K500 Buttweld Fittings
• Testing of Monel K500 Buttweld Fittings
• People also Search For Monel K500 Buttweld Fittings
• Export Destinations
• Domestic Supply

Silicon Steels is one of the best manufacturer, stockiest, supplier and stockiest of Monel K500 Buttweld Fittings based in Mumbai, India, which possesses the best corrosion resistance properties. At Silicon Steels, We manufacture ASTM B366 Monel K500 Buttweld Fittings using the best quality raw material and updated technology, which makes it more durable. UNS N05500 Butt Weld Fittings are available in different sizes and shapes, customers can get it easily as per their specifications. Monel alloy K500 Pipe fittings possess high tensile strength and hardness.

Monel alloy K500 Grade has high strength and toughness compared to grade 400. It offers the best corrosion resistance to stress corrosion cracking. ASTM B366 Monel K500 Seamless Pipe Fittings contains 63% Nickel content, 33% copper content, 3.15% aluminum content, and 2% ferrite content. These Monel K500 butt weld fittings can be hardened and strengthened further. It gives excellent corrosion resistance to pitting and crevice corrosion. Monel K500 Eccentric Reducer possesses the best mechanical and welding properties. Monel K500 Crosses are highly resistant to intergranular corrosion and general corrosion. These UNS N05500 butt weld fittings can be used effectively at high elevated temperature.

UNS N05500 Monel® Alloy Butt weld Seamless Pipe Fitting, Monel® Alloy K-500 Buttweld Fittings, K500 Monel Welded Pipe Fittings Suppliers, K500 Nickel Alloy ANSI B16.9 Short & Long Radius Elbow, Monel Grade K500 Butt weld Pipe Fittings Stockists in Mumbai, Alloy K500 MSS-SP-43 Buttweld Swage Nipple, MSS SP-79 Monel K500 End Pipe Cap Suppliers, ASME B16.28 K500 Monel® Alloy Butt weld Reducing Tee, Monel Alloy Butt weld Pipe Fittings, Monel Pipe Fittings, Werkstoff No 2.4375 Monel® Alloy Butt weld Eccentric Reducer Traders, Nickelvac® K500 Pipe Fittings, K500 Monel® Concentric Reducer, K500 Monel® 45°/90°/180° Butt weld Elbow, Ferrochronin® K500 Pipe Fittings, Distributors of Monel® K500 ASME SB366 Buttweld Reducer, K500 Monel Unequal Cross Exporters, Alloy K500 Pipe Fittings Suppliers, K500 Nickel Alloy Buttweld Tee Dealer, ASTM B366 Monel K500 Pipe Elbow, Monel® K500 Stub Ends Exporters, Monel K-500 Equal Tee Wholesaler.

Monel alloy K500 pipe fittings give outstanding corrosion resistance to countering and harmful acids. Monel K500 Seamless Pipe fittings are used in heat exchangers and condensers. Monel K500 End cap is mostly used in the marine industry, offshore oil drilling companies, and seawater equipment. Monel K500 Reducer is used in pumps, shafts, and valves. ASME SB366 Monel K500 Equal Cross fittings are often used in the chemical industry and pharmaceutical industry.

Specification :

Specifications	ASTM B366 / ASME SB366
Dimension Standard	ASME/ANSI B16.9, ASME B16.28, MSS-SP-43
ASME B16.9	standard for – Factory-Made Wrought Buttwelding Fittings
ASME B16.25	Buttwelding Ends.
ASME B16.28	standard for – Butt-Welded Short Radius Elbows & Returns Bends
MSS SP-43	Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications
Size Range	½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100)
Seamless Butt Weld Fitting Size	1/2" - 10"
Welded Butt Weld Fittings Size	1/2" - 48"
Thickness	Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS
Bending Radius	R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom
Type	Seamless / Welded / Fabricated

Types of Monel K500 Buttweld Fittings :

	ASTM B366 Monel K500 Concentric Reducer	ASME B366 UNS N05500 SCH10 Concentric Reducer	Werkstoff Nr. 2.4375 SCH20 Concentric Reducer
	ASTM B366 Monel K500 Eccentric Reducer	ASME B366 UNS N05500 SCH10 Eccentric Reducer	Werkstoff Nr. 2.4375 SCH20 Eccentric Reducer
	ASTM B366 Monel K500 End Cap	ASME B366 UNS N05500 SCH10 End Cap	Werkstoff Nr. 2.4375 SCH20 End Cap
	ASTM B366 Monel K500 Equal Tee	ASME B366 UNS N05500 SCH10 Equal Tee	Werkstoff Nr. 2.4375 SCH20 Equal Tee
	ASTM B366 Monel K500 Elbow 45 Deg	ASME B366 UNS N05500 SCH10 Elbow 45 Deg	Werkstoff Nr. 2.4375 SCH20 Elbow 45 Deg
	ASTM B366 Monel K500 Elbow 90 Deg	ASME B366 UNS N05500 SCH10 Elbow 90 Deg	Werkstoff Nr. 2.4375 SCH20 Elbow 90 Deg
	ASTM B366 Monel K500 Elbow 180 Deg	ASME B366 UNS N05500 SCH10 Elbow 180 Deg	Werkstoff Nr. 2.4375 SCH20 Elbow 180 Deg
	ASTM B366 Monel K500 Elbow Nipple Fittings	ASME B366 UNS N05500 SCH10 Elbow Nipple Fittings	Werkstoff Nr. 2.4375 SCH20 Elbow Nipple Fittings
	ASTM B366 Monel K500 Stub End Fitting	ASME B366 UNS N05500 SCH10 Stub End Fitting	Werkstoff Nr. 2.4375 SCH20 Stub End Fitting
	ASTM B366 Monel K500 Cross	ASME B366 UNS N05500 SCH10 Cross	Werkstoff Nr. 2.4375 SCH20 Cross -

Equivalent Grade :

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	BS	GOST
Monel K500	N05500	2.4375	–	–	–	–	–

Chemical Composition :

Grade	C	Mn	Si	S	Cu	Fe	Ni
Monel K500	0.25 max	1.5 max	0.5 max	0.010 max	27.00 – 33.00	0.5 – 2	63.00 min

Elbow Dimensions Standard :

NOMINAL PIPE SIZE	ALL FITTINGS	ALL FITTINGS	ELBOWS AND TEES	180 DEG RETURN BENDS	180 DEG RETURN BENDS	180 DEG RETURN BENDS	REDUCERS	CAPS
NPS	O.D. at Bevel (1), (2)	I.D. at End (1), (3), (4)	Centre -to- End Dimension A, B, C, M	Centre-to- Centre O	Back-to- Face K	Alignment of Ends U	Overall Length H	Overall Length E
½ to 2½	0.06 -0.03	0.03	0.06	0.25	0.25	0.03	0.06	0.12
3 to 3 ½	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
4	0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.12
5 to 8	0.09 -0.06	0.06	0.06	0.25	0.25	0.03	0.06	0.25
10 to 18	0.16 -0.12	0.12	0.09	0.38	0.25	0.06	0.09	0.25
20 to 24	0.25 -0.19	0.19	0.09	0.38	0.25	0.06	0.09	0.25
26 to 30	0.25 -0.19	0.19	0.12	…	…	…	0.19	0.38
32 to 48	0.25 -0.19	0.19	0.19	…	…	…	0.19	0.38

Dimensions Chart of Steel Reducer Fittings :

NOMINAL PIPE SIZE	OUTSIDE DIAMETER		END TO END
Inch	D	P	H
3/4 x 1/2	26.7	21.3	38
3/4 x 3/8	26.7	17.1	38
1 x 3/4	33.4	26.7	51
1 x 1/2	33.4	21.3	51
1 1/4 x 1	42.2	33.4	51
1 1/4 x 3/4	42.2	26.7	51
1 1/4 x 1/2	42.2	21.3	51
1 1/2 x 1 1/2	48.3	42.2	64
1 1/2 x 1	48.3	33.4	64
1 1/2 x 3/4	48.3	26.7	64
1 1/2 x 1/2	48.3	21.3	64
2 x 1 1/2	60.3	48.2	76
2 x 1 1/4	60.3	42.2	76
2 x 1	60.3	33.4	76
2 x 3/4	60.3	26.7	76
2 1/2 x 2	73	60.3	89
2 1/2 x 1 1/2	73	48.3	89
2 1/2 x 1 1/4	73	42.2	89
2 1/2 x 1	73	33.4	89
3 x 2 1/2	88.9	73	89
3 x 2	88.9	60.3	89
3 x 1 1/2	88.9	48.3	89
3 x 1 1/4	88.9	42.2	89
3 1/2 x 3	101.6	88.9	102
3 1/2 x 21/2	101.6	73	102
3 1/2 x 2	101.6	60.3	102
3 1/2 x 1 1/2	101.6	48.3	102
3 1/2 x 1 1/4	101.6	42.2	102
4 x 3 1/2	114.3	101.6	102
4 x 3	114.3	88.9	102
4 x 2 1/2	114.3	73	102
4 x 2	114.3	60.3	102
4 x 1 1/2	114.3	48.3	102
5 x 4	141.3	114.3	127
5 x 3 1/2	141.3	101.6	127
5 x 3	141.3	88.9	127
5 x 2 1/2	141.3	73	127
5 x 2	141.3	60.3	127
6 x 5	168.3	141.3	140
6 x 4	168.3	114.3	140
6 x 3 1/2	168.3	101.6	140
6 x 3	168.3	88.9	140
6 x 2 1/2	168.3	73	140
8 x 6	219.1	168.3	152
8 x 5	219.1	141.3	152
8 x 4	219.1	114.3	152
8 x 3 1/2	219.1	101.6	152
10 x 8	273.1	219.1	178
10 x 6	273.1	168.1	178
10 x 5	273.1	141.3	178
10 x 4	273.1	114.3	178
12 x 10	323.9	273.1	203
12 x 8	323.9	219.1	203
12 x 6	323.9	168.3	203
12 x 5	323.9	141.3	203
14 x 12	355.6	323.9	330
14 x 10	355.6	273.1	330
14 x 8	355.6	219.1	330
14 x 6	355.6	168.3	330
16 x 14	406.4	355.6	356
16 x 12	406.4	323.9	356
16 x 10	406.4	273.1	356
16 x 8	406.4	219.1	356
16 x 6	406.4	168.3	356
18 x 16	457	406.4	381
18 x 14	457	355.6	381
18 x 12	457	323.9	381
18 x 10	457	273.1	381
18 x 8	457	219.1	381
20 x 18	508	457	508
20 x 16	508	406.4	508
20 x 14	508	355.6	508
20 x 12	508	323.9	508
20 x 10	508	273.1	508
20 x 8	508	219.1	508
22 x 20	559	508	508
22 x 18	559	457	508
22 x 16	559	406.4	508
22 x 14	559	355.6	508
22 x 12	559	323.9	508
24 x 10	559	273.1	508
24 x 22	610	559	508
24 x 20	610	508	508
24 x 18	610	457	508
24 x 16	610	406.4	508
24 x 14	610	355.6	508
24 x 12	610	323.9	508
24 x 10	610	273.1	508

Steel Buttweld Fittings Pressure Rating Chart :

NPS (inch)	Pipe Sch.	Wall Thk. (in)	OD (inch)	Temperature
				100	200	300	400	500
				Allowable Stress (Pressure Rating)
				16700	16700	16700	15500	14400
1"	40	0.133	1.315	2205	2205	2205	2047	1902
	80	0.179	1.315	3061	3061	3061	2841	2640
	160	0.250	1.315	4493	4493	4493	4170	3874
1 1/2"	40	0.145	1.900	1629	1629	1629	1512	1404
	80	0.200	1.900	2303	2303	2303	2138	1986
	160	0.281	1.900	3362	3362	3362	3120	2899
2"	40	0.154	2.375	1371	1371	1371	1272	1182
	80	0.218	2.375	1985	1985	1985	1843	1712
	160	0.344	2.375	3283	3283	3283	3047	2831
3"	40	0.216	3.500	1301	1301	1301	1208	1122
	80	0.300	3.500	1844	1844	1844	1712	1590
	160	0.438	3.500	2787	2787	2787	2587	2403
4"	40	0.237	4.500	1102	1102	1102	1023	950
	80	0.337	4.500	1596	1596	1596	1482	1377
	160	0.531	4.500	2611	2611	2611	2424	2552
5"	40	0.258	5.563	965	965	965	896	832
	80	0.375	5.563	1428	1428	1428	1325	1231
	160	0.625	5.563	2474	2474	2474	2296	2133
6"	40	0.280	6.625	877	877	877	814	756
	80	0.432	6.625	1379	1379	1379	1280	1189
	160	0.719	6.625	2382	2382	2382	2211	2054
8"	40	0.322	8.625	771	771	771	716	665
	80	0.500	8.625	1218	1218	1218	1131	1050
	160	0.906	8.625	2298	2298	2298	2133	1982
10"	40	0.365	10.750	699	699	699	649	603
	80	0.594	10.750	1159	1159	1159	1075	999
	160	1.125	10.750	2289	2289	2289	2124	1974

Dimensional Tolerances Of Butt Weld Elbows :

Outside Diameter at Bevel (D)	+ 1.06 - 0.08	1.06	1.06	+ 2.04 - 1.06
Nominal Pipe Size	1/2 to 2½	3 to 3½	4	5 to 8
Center to End LR (A/B)	2	2	2	2
Nominal Pipe Size	10 to 18	20 to 24	26 to 30	32 to 48
Outside Diameter at Bevel (D)	+ 4 - 3.02	+ 6.04 - 4.08	+ 6.04 - 4.08	+ 6.04 - 4.08
Inside Diameter at End	3.02	4.08	+ 6.04 - 4.08	+ 6.04 - 4.08
Center to End 3D (A/B)	3	3	6	6
Center to End LR (A/B)	2	2	3	5
Inside Diameter at End	0.08	1.06	1.06	1.06
Center to End 3D (A/B)	3	3	3	3
Wall Thickness (t)	Not less than 87.05% of Nominal Wall Thickness

Prices of Buttweld Pipe Fittings :

Steel 45 Elbow °
$80.12 - $95.28/ Piece

Steel 90° Elbow
$2.09 - $3.07/ Piece

Steel 180° Elbow
$0.49 - $48.27/ Piece

Steel Equal Tee
$5.89 - $175.32/ Piece

Steel Concentric Reducer
US $1-5 / Piece

Steel Eccentric Reducer
US $0.07 / Piece

Steel LR Elbow
US $0.01-3 / Piece

Steel SR Elbow
US $0.1-0.2 / Piece

Steel End Pipe Cap
US $1-5 / Piece

Steel Stub End
US $ 2.5-50 / Piece

Steel Equal Cross
US $ 1-15 / Piece

Steel Reducing Tee
US $ 1.2 / Piece

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
