Silicon Steels is one of the best manufacturers, suppliers, stockiest, and exporter of the Stainless Steel 317L Buttweld fittings. At silicon steel, we always make sure that our ASTM A403 Stainless Steel 317L Pipe fittings are produced using the best quality raw material under the guidance of experienced individuals by following industrial norms. At Silicon Steels, these Stainless Steel UNS S304100 Pipe fittings available in different shapes and sizes. Its available wall thickness size ranges from sch 10s to Sch XXs. These ASTM A403 Stainless Steel 317L Pipe fittings come with an accurate design and high yield strength.

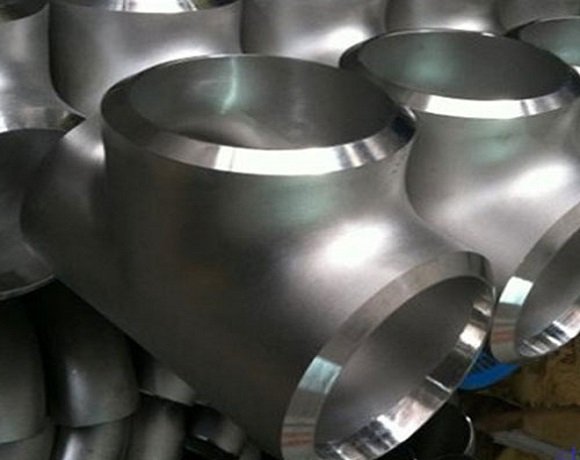

Stainless Steel 317 Equal Tee has the best corrosion resistance to Stress corrosion cracking. It is austenitic steel and performs better at high elevated temperature as it possesses high tensile strength and yield strength at high elevated temperature. Stainless Steel 317L butt weld fittings contain 20% Chromium, 58% Ferrite, 15% Nickel, and Molybdenum content up to 4%. Stainless Steel 317 End Cap provides the best corrosion resistance to pitting and crevice corrosion and chemical corrosion. It also gives excellent corrosion resistance to many aqueous acid and alkaline.
Stainless Steel 317L Buttweld fittings are used in many industries as it possesses many characteristics. ASTM A403 Stainless Steel 317 Welded butt weld fittings are mostly used in the chemical industry and petrochemical industry. It is also used in the pharmaceutical industry. Stainless Steel UNS S31700 Stub End are often used in gas processing units, power generation units, and petroleum units. Stainless Steel 317 Equal Cross fittings can be used extensively in heat exchangers, condensers, pumps, shafts, valves, and fasteners.
| Specifications | ASTM A403 / ASME SA403 |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | standard for – Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends. |
| ASME B16.28 | standard for – Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Seamless Butt Weld Fitting Size | 1/2" - 10" |
| Welded Butt Weld Fittings Size | 1/2" - 48" |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 317L | 1.4438 | S31703 | SUS 317L | – | – | – | X2CrNiMo18-15-4 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N | |
| 317L | min. | – | – | – | – | – | 18.0 | 3.0-4.0 | 11.0 | – |
| max. | 0.08 | 2.0 | 1.0 | 0.040 | 0.030 | 20.0 | 15.0 | – | ||
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER | END TO END | |
|---|---|---|---|
| Inch | D | P | H |
| 3/4 x 1/2 | 26.7 | 21.3 | 38 |
| 3/4 x 3/8 | 26.7 | 17.1 | 38 |
| 1 x 3/4 | 33.4 | 26.7 | 51 |
| 1 x 1/2 | 33.4 | 21.3 | 51 |
| 1 1/4 x 1 | 42.2 | 33.4 | 51 |
| 1 1/4 x 3/4 | 42.2 | 26.7 | 51 |
| 1 1/4 x 1/2 | 42.2 | 21.3 | 51 |
| 1 1/2 x 1 1/2 | 48.3 | 42.2 | 64 |
| 1 1/2 x 1 | 48.3 | 33.4 | 64 |
| 1 1/2 x 3/4 | 48.3 | 26.7 | 64 |
| 1 1/2 x 1/2 | 48.3 | 21.3 | 64 |
| 2 x 1 1/2 | 60.3 | 48.2 | 76 |
| 2 x 1 1/4 | 60.3 | 42.2 | 76 |
| 2 x 1 | 60.3 | 33.4 | 76 |
| 2 x 3/4 | 60.3 | 26.7 | 76 |
| 2 1/2 x 2 | 73 | 60.3 | 89 |
| 2 1/2 x 1 1/2 | 73 | 48.3 | 89 |
| 2 1/2 x 1 1/4 | 73 | 42.2 | 89 |
| 2 1/2 x 1 | 73 | 33.4 | 89 |
| 3 x 2 1/2 | 88.9 | 73 | 89 |
| 3 x 2 | 88.9 | 60.3 | 89 |
| 3 x 1 1/2 | 88.9 | 48.3 | 89 |
| 3 x 1 1/4 | 88.9 | 42.2 | 89 |
| 3 1/2 x 3 | 101.6 | 88.9 | 102 |
| 3 1/2 x 21/2 | 101.6 | 73 | 102 |
| 3 1/2 x 2 | 101.6 | 60.3 | 102 |
| 3 1/2 x 1 1/2 | 101.6 | 48.3 | 102 |
| 3 1/2 x 1 1/4 | 101.6 | 42.2 | 102 |
| 4 x 3 1/2 | 114.3 | 101.6 | 102 |
| 4 x 3 | 114.3 | 88.9 | 102 |
| 4 x 2 1/2 | 114.3 | 73 | 102 |
| 4 x 2 | 114.3 | 60.3 | 102 |
| 4 x 1 1/2 | 114.3 | 48.3 | 102 |
| 5 x 4 | 141.3 | 114.3 | 127 |
| 5 x 3 1/2 | 141.3 | 101.6 | 127 |
| 5 x 3 | 141.3 | 88.9 | 127 |
| 5 x 2 1/2 | 141.3 | 73 | 127 |
| 5 x 2 | 141.3 | 60.3 | 127 |
| 6 x 5 | 168.3 | 141.3 | 140 |
| 6 x 4 | 168.3 | 114.3 | 140 |
| 6 x 3 1/2 | 168.3 | 101.6 | 140 |
| 6 x 3 | 168.3 | 88.9 | 140 |
| 6 x 2 1/2 | 168.3 | 73 | 140 |
| 8 x 6 | 219.1 | 168.3 | 152 |
| 8 x 5 | 219.1 | 141.3 | 152 |
| 8 x 4 | 219.1 | 114.3 | 152 |
| 8 x 3 1/2 | 219.1 | 101.6 | 152 |
| 10 x 8 | 273.1 | 219.1 | 178 |
| 10 x 6 | 273.1 | 168.1 | 178 |
| 10 x 5 | 273.1 | 141.3 | 178 |
| 10 x 4 | 273.1 | 114.3 | 178 |
| 12 x 10 | 323.9 | 273.1 | 203 |
| 12 x 8 | 323.9 | 219.1 | 203 |
| 12 x 6 | 323.9 | 168.3 | 203 |
| 12 x 5 | 323.9 | 141.3 | 203 |
| 14 x 12 | 355.6 | 323.9 | 330 |
| 14 x 10 | 355.6 | 273.1 | 330 |
| 14 x 8 | 355.6 | 219.1 | 330 |
| 14 x 6 | 355.6 | 168.3 | 330 |
| 16 x 14 | 406.4 | 355.6 | 356 |
| 16 x 12 | 406.4 | 323.9 | 356 |
| 16 x 10 | 406.4 | 273.1 | 356 |
| 16 x 8 | 406.4 | 219.1 | 356 |
| 16 x 6 | 406.4 | 168.3 | 356 |
| 18 x 16 | 457 | 406.4 | 381 |
| 18 x 14 | 457 | 355.6 | 381 |
| 18 x 12 | 457 | 323.9 | 381 |
| 18 x 10 | 457 | 273.1 | 381 |
| 18 x 8 | 457 | 219.1 | 381 |
| 20 x 18 | 508 | 457 | 508 |
| 20 x 16 | 508 | 406.4 | 508 |
| 20 x 14 | 508 | 355.6 | 508 |
| 20 x 12 | 508 | 323.9 | 508 |
| 20 x 10 | 508 | 273.1 | 508 |
| 20 x 8 | 508 | 219.1 | 508 |
| 22 x 20 | 559 | 508 | 508 |
| 22 x 18 | 559 | 457 | 508 |
| 22 x 16 | 559 | 406.4 | 508 |
| 22 x 14 | 559 | 355.6 | 508 |
| 22 x 12 | 559 | 323.9 | 508 |
| 24 x 10 | 559 | 273.1 | 508 |
| 24 x 22 | 610 | 559 | 508 |
| 24 x 20 | 610 | 508 | 508 |
| 24 x 18 | 610 | 457 | 508 |
| 24 x 16 | 610 | 406.4 | 508 |
| 24 x 14 | 610 | 355.6 | 508 |
| 24 x 12 | 610 | 323.9 | 508 |
| 24 x 10 | 610 | 273.1 | 508 |
| NPS (inch) |
Pipe Sch. | Wall Thk. (in) |
OD (inch) |
Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1" | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2" | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2" | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3" | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4" | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5" | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6" | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8" | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10" | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
| Outside Diameter at Bevel (D) |
+ 1.06 - 0.08 |
1.06 | 1.06 | + 2.04 - 1.06 |
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 |
| Center to End LR (A/B) | 2 | 2 | 2 | 2 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 - 3.02 |
+ 6.04 - 4.08 |
+ 6.04 - 4.08 |
+ 6.04 - 4.08 |
| Inside Diameter at End | 3.02 | 4.08 | + 6.04 - 4.08 |
+ 6.04 - 4.08 |
| Center to End 3D (A/B) | 3 | 3 | 6 | 6 |
| Center to End LR (A/B) | 2 | 2 | 3 | 5 |
| Inside Diameter at End | 0.08 | 1.06 | 1.06 | 1.06 |
| Center to End 3D (A/B) | 3 | 3 | 3 | 3 |
| Wall Thickness (t) | Not less than 87.05% of Nominal Wall Thickness | |||
Steel 45 Elbow °
$80.12 - $95.28/ Piece
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
