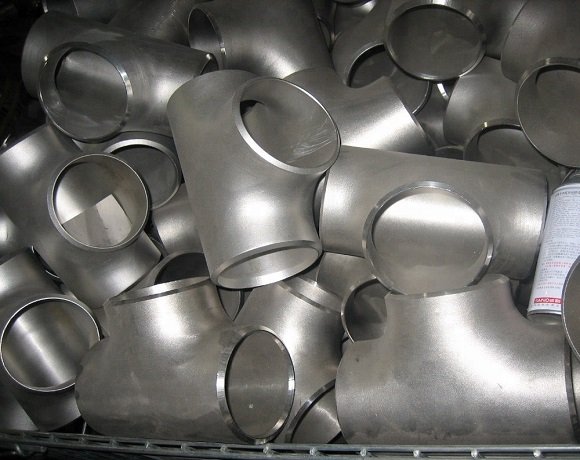

Silicon Steels is one of the best manufacturers, suppliers, stockiest, and exporters of Stainless Steel 310 Buttweld Fittings, which possesses good ductility, forming, and thermal properties. It possesses the best corrosion resistance properties. ASTM A403 Austenitic Stainless Steel 310 pipe fittings are available in different shapes and sizes. Its thickness ranges from 1 mm to 200 mm. Stainless Steel 310 Butt weld fittings possess high yield strength and mechanical properties. These Stainless Steel 310 Butt weld fittings are manufactured using the best quality raw material and latest technology under the special guidance of highly skilled experts. One can get these Stainless Steel 310 Butt weld fittings at the most affordable price. UNS Butt weld fittings contain high tensile strength and toughness.
Stainless Steel 310 Buttweld Fittings has the best corrosion resistance to stress corrosion cracking. ASME SA403 Stainless Steel 310 Butt weld fittings can be used effectively up to 1904 Degree F. It contains 54.7% Ferrite as primary content, followed by 26% chromium and 21% nickel content. Werkstoff Nr 1.4841 butt weld fittings are very accurate designed and it delivers excellent performance. It is highly resistant to pitting and crevice corrosion and other organic and inorganic acids.
Stainless Steel 310 butt weld fittings are mostly used in heat exchangers and condensers. Stainless Steel 310 Cross is used in pulp and paper industry and sugar mills. Stainless Steel 310 Pipe bend is often used in the construction industry. Stainless Steel 310 Elbow fittings are used in the petrochemical industry, chemical industry, petroleum industry, and oil & gas industry. It is also used in power generation units.
| Specifications | ASTM A403 / ASME SA403 |
| Dimension Standard | ASME/ANSI B16.9, ASME B16.28, MSS-SP-43 |
| ASME B16.9 | standard for – Factory-Made Wrought Buttwelding Fittings |
| ASME B16.25 | Buttwelding Ends. |
| ASME B16.28 | standard for – Butt-Welded Short Radius Elbows & Returns Bends |
| MSS SP-43 | Wrought and Fabricated Butt-Welding Fittings for Low Pressure, Corrosion Resistant Applications |
| Size Range | ½" NB to 24" NB in Sch 10s, 40s, 80s, 160s, XXS. (DN6~DN100) |
| Seamless Butt Weld Fitting Size | 1/2" - 10" |
| Welded Butt Weld Fittings Size | 1/2" - 48" |
| Thickness | Sch 5s, Sch 10s, Sch 40s, Sch 80s, Sch 160s, Sch XXS |
| Bending Radius | R=1D, 2D, 3D, 5D, 6D, 8D, 10D or Custom |
| Type | Seamless / Welded / Fabricated |
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
|
| Grade | UNS | DIN | JIS | EN | GOST | BS |
|---|---|---|---|---|---|---|
| SS 310 | S31000 | 1.4841 | SUS 310 | X15CrNi25-20 | 20Ch25N20S2 | 310S24 |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | Fe |
|---|---|---|---|---|---|---|---|---|---|
| SS 310 | 0.015 max | 2.0 max | 0.15 max | 0.020 max | 0.015 max | 24.00 - 26.00 | 0.10 max | 19.00 - 21.00 | 54.7 min |
| NOMINAL PIPE SIZE | ALL FITTINGS | ALL FITTINGS | ELBOWS AND TEES | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | 180 DEG RETURN BENDS | REDUCERS | CAPS |
|---|---|---|---|---|---|---|---|---|
| NPS | O.D. at Bevel (1), (2) | I.D. at End (1), (3), (4) |
Centre -to- End Dimension A, B, C, M | Centre-to- Centre O | Back-to- Face K | Alignment of Ends U | Overall Length H | Overall Length E |
| ½ to 2½ | 0.06 -0.03 |
0.03 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 3 to 3 ½ | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 4 | 0.06 | 0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.12 |
| 5 to 8 | 0.09 -0.06 |
0.06 | 0.06 | 0.25 | 0.25 | 0.03 | 0.06 | 0.25 |
| 10 to 18 | 0.16 -0.12 |
0.12 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 20 to 24 | 0.25 -0.19 |
0.19 | 0.09 | 0.38 | 0.25 | 0.06 | 0.09 | 0.25 |
| 26 to 30 | 0.25 -0.19 |
0.19 | 0.12 | … | … | … | 0.19 | 0.38 |
| 32 to 48 | 0.25 -0.19 |
0.19 | 0.19 | … | … | … | 0.19 | 0.38 |
| NOMINAL PIPE SIZE | OUTSIDE DIAMETER | END TO END | |
|---|---|---|---|
| Inch | D | P | H |
| 3/4 x 1/2 | 26.7 | 21.3 | 38 |
| 3/4 x 3/8 | 26.7 | 17.1 | 38 |
| 1 x 3/4 | 33.4 | 26.7 | 51 |
| 1 x 1/2 | 33.4 | 21.3 | 51 |
| 1 1/4 x 1 | 42.2 | 33.4 | 51 |
| 1 1/4 x 3/4 | 42.2 | 26.7 | 51 |
| 1 1/4 x 1/2 | 42.2 | 21.3 | 51 |
| 1 1/2 x 1 1/2 | 48.3 | 42.2 | 64 |
| 1 1/2 x 1 | 48.3 | 33.4 | 64 |
| 1 1/2 x 3/4 | 48.3 | 26.7 | 64 |
| 1 1/2 x 1/2 | 48.3 | 21.3 | 64 |
| 2 x 1 1/2 | 60.3 | 48.2 | 76 |
| 2 x 1 1/4 | 60.3 | 42.2 | 76 |
| 2 x 1 | 60.3 | 33.4 | 76 |
| 2 x 3/4 | 60.3 | 26.7 | 76 |
| 2 1/2 x 2 | 73 | 60.3 | 89 |
| 2 1/2 x 1 1/2 | 73 | 48.3 | 89 |
| 2 1/2 x 1 1/4 | 73 | 42.2 | 89 |
| 2 1/2 x 1 | 73 | 33.4 | 89 |
| 3 x 2 1/2 | 88.9 | 73 | 89 |
| 3 x 2 | 88.9 | 60.3 | 89 |
| 3 x 1 1/2 | 88.9 | 48.3 | 89 |
| 3 x 1 1/4 | 88.9 | 42.2 | 89 |
| 3 1/2 x 3 | 101.6 | 88.9 | 102 |
| 3 1/2 x 21/2 | 101.6 | 73 | 102 |
| 3 1/2 x 2 | 101.6 | 60.3 | 102 |
| 3 1/2 x 1 1/2 | 101.6 | 48.3 | 102 |
| 3 1/2 x 1 1/4 | 101.6 | 42.2 | 102 |
| 4 x 3 1/2 | 114.3 | 101.6 | 102 |
| 4 x 3 | 114.3 | 88.9 | 102 |
| 4 x 2 1/2 | 114.3 | 73 | 102 |
| 4 x 2 | 114.3 | 60.3 | 102 |
| 4 x 1 1/2 | 114.3 | 48.3 | 102 |
| 5 x 4 | 141.3 | 114.3 | 127 |
| 5 x 3 1/2 | 141.3 | 101.6 | 127 |
| 5 x 3 | 141.3 | 88.9 | 127 |
| 5 x 2 1/2 | 141.3 | 73 | 127 |
| 5 x 2 | 141.3 | 60.3 | 127 |
| 6 x 5 | 168.3 | 141.3 | 140 |
| 6 x 4 | 168.3 | 114.3 | 140 |
| 6 x 3 1/2 | 168.3 | 101.6 | 140 |
| 6 x 3 | 168.3 | 88.9 | 140 |
| 6 x 2 1/2 | 168.3 | 73 | 140 |
| 8 x 6 | 219.1 | 168.3 | 152 |
| 8 x 5 | 219.1 | 141.3 | 152 |
| 8 x 4 | 219.1 | 114.3 | 152 |
| 8 x 3 1/2 | 219.1 | 101.6 | 152 |
| 10 x 8 | 273.1 | 219.1 | 178 |
| 10 x 6 | 273.1 | 168.1 | 178 |
| 10 x 5 | 273.1 | 141.3 | 178 |
| 10 x 4 | 273.1 | 114.3 | 178 |
| 12 x 10 | 323.9 | 273.1 | 203 |
| 12 x 8 | 323.9 | 219.1 | 203 |
| 12 x 6 | 323.9 | 168.3 | 203 |
| 12 x 5 | 323.9 | 141.3 | 203 |
| 14 x 12 | 355.6 | 323.9 | 330 |
| 14 x 10 | 355.6 | 273.1 | 330 |
| 14 x 8 | 355.6 | 219.1 | 330 |
| 14 x 6 | 355.6 | 168.3 | 330 |
| 16 x 14 | 406.4 | 355.6 | 356 |
| 16 x 12 | 406.4 | 323.9 | 356 |
| 16 x 10 | 406.4 | 273.1 | 356 |
| 16 x 8 | 406.4 | 219.1 | 356 |
| 16 x 6 | 406.4 | 168.3 | 356 |
| 18 x 16 | 457 | 406.4 | 381 |
| 18 x 14 | 457 | 355.6 | 381 |
| 18 x 12 | 457 | 323.9 | 381 |
| 18 x 10 | 457 | 273.1 | 381 |
| 18 x 8 | 457 | 219.1 | 381 |
| 20 x 18 | 508 | 457 | 508 |
| 20 x 16 | 508 | 406.4 | 508 |
| 20 x 14 | 508 | 355.6 | 508 |
| 20 x 12 | 508 | 323.9 | 508 |
| 20 x 10 | 508 | 273.1 | 508 |
| 20 x 8 | 508 | 219.1 | 508 |
| 22 x 20 | 559 | 508 | 508 |
| 22 x 18 | 559 | 457 | 508 |
| 22 x 16 | 559 | 406.4 | 508 |
| 22 x 14 | 559 | 355.6 | 508 |
| 22 x 12 | 559 | 323.9 | 508 |
| 24 x 10 | 559 | 273.1 | 508 |
| 24 x 22 | 610 | 559 | 508 |
| 24 x 20 | 610 | 508 | 508 |
| 24 x 18 | 610 | 457 | 508 |
| 24 x 16 | 610 | 406.4 | 508 |
| 24 x 14 | 610 | 355.6 | 508 |
| 24 x 12 | 610 | 323.9 | 508 |
| 24 x 10 | 610 | 273.1 | 508 |
| NPS (inch) |
Pipe Sch. | Wall Thk. (in) |
OD (inch) |
Temperature | ||||
|---|---|---|---|---|---|---|---|---|
| 100 | 200 | 300 | 400 | 500 | ||||
| Allowable Stress (Pressure Rating) | ||||||||
| 16700 | 16700 | 16700 | 15500 | 14400 | ||||
| 1" | 40 | 0.133 | 1.315 | 2205 | 2205 | 2205 | 2047 | 1902 |
| 80 | 0.179 | 1.315 | 3061 | 3061 | 3061 | 2841 | 2640 | |
| 160 | 0.250 | 1.315 | 4493 | 4493 | 4493 | 4170 | 3874 | |
| 1 1/2" | 40 | 0.145 | 1.900 | 1629 | 1629 | 1629 | 1512 | 1404 |
| 80 | 0.200 | 1.900 | 2303 | 2303 | 2303 | 2138 | 1986 | |
| 160 | 0.281 | 1.900 | 3362 | 3362 | 3362 | 3120 | 2899 | |
| 2" | 40 | 0.154 | 2.375 | 1371 | 1371 | 1371 | 1272 | 1182 |
| 80 | 0.218 | 2.375 | 1985 | 1985 | 1985 | 1843 | 1712 | |
| 160 | 0.344 | 2.375 | 3283 | 3283 | 3283 | 3047 | 2831 | |
| 3" | 40 | 0.216 | 3.500 | 1301 | 1301 | 1301 | 1208 | 1122 |
| 80 | 0.300 | 3.500 | 1844 | 1844 | 1844 | 1712 | 1590 | |
| 160 | 0.438 | 3.500 | 2787 | 2787 | 2787 | 2587 | 2403 | |
| 4" | 40 | 0.237 | 4.500 | 1102 | 1102 | 1102 | 1023 | 950 |
| 80 | 0.337 | 4.500 | 1596 | 1596 | 1596 | 1482 | 1377 | |
| 160 | 0.531 | 4.500 | 2611 | 2611 | 2611 | 2424 | 2552 | |
| 5" | 40 | 0.258 | 5.563 | 965 | 965 | 965 | 896 | 832 |
| 80 | 0.375 | 5.563 | 1428 | 1428 | 1428 | 1325 | 1231 | |
| 160 | 0.625 | 5.563 | 2474 | 2474 | 2474 | 2296 | 2133 | |
| 6" | 40 | 0.280 | 6.625 | 877 | 877 | 877 | 814 | 756 |
| 80 | 0.432 | 6.625 | 1379 | 1379 | 1379 | 1280 | 1189 | |
| 160 | 0.719 | 6.625 | 2382 | 2382 | 2382 | 2211 | 2054 | |
| 8" | 40 | 0.322 | 8.625 | 771 | 771 | 771 | 716 | 665 |
| 80 | 0.500 | 8.625 | 1218 | 1218 | 1218 | 1131 | 1050 | |
| 160 | 0.906 | 8.625 | 2298 | 2298 | 2298 | 2133 | 1982 | |
| 10" | 40 | 0.365 | 10.750 | 699 | 699 | 699 | 649 | 603 |
| 80 | 0.594 | 10.750 | 1159 | 1159 | 1159 | 1075 | 999 | |
| 160 | 1.125 | 10.750 | 2289 | 2289 | 2289 | 2124 | 1974 | |
| Outside Diameter at Bevel (D) |
+ 1.06 - 0.08 |
1.06 | 1.06 | + 2.04 - 1.06 |
| Nominal Pipe Size | 1/2 to 2½ | 3 to 3½ | 4 | 5 to 8 |
| Center to End LR (A/B) | 2 | 2 | 2 | 2 |
| Nominal Pipe Size | 10 to 18 | 20 to 24 | 26 to 30 | 32 to 48 |
| Outside Diameter at Bevel (D) |
+ 4 - 3.02 |
+ 6.04 - 4.08 |
+ 6.04 - 4.08 |
+ 6.04 - 4.08 |
| Inside Diameter at End | 3.02 | 4.08 | + 6.04 - 4.08 |
+ 6.04 - 4.08 |
| Center to End 3D (A/B) | 3 | 3 | 6 | 6 |
| Center to End LR (A/B) | 2 | 2 | 3 | 5 |
| Inside Diameter at End | 0.08 | 1.06 | 1.06 | 1.06 |
| Center to End 3D (A/B) | 3 | 3 | 3 | 3 |
| Wall Thickness (t) | Not less than 87.05% of Nominal Wall Thickness | |||
Steel 45 Elbow °
$80.12 - $95.28/ Piece
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
