Silicon Steels is a well-known producer of Titanium Grade 2 Fasteners which is supplied into many industry sectors. We are one of Titanium Grade 2 Fasteners leading manufacturers. We manufacture, supply and export to domestic as well as foreign clients. Fasteners are offered to customers according to customer requirements of different types, sizes and forms. Our firm strives in this area of production to meet all requirements of the metal industry and customers in an excellent manner. Concerning national and global needs, we produce these Fasteners. The Fasteners are monitored for consistency to various tests before they are shipped to the customer.
Low concentrations of iron and oxygen mechanically impair pure titanium alloys. Grade 2 Unalloyed Ti ("Pure") 50A alloy is the most frequently used and readily available form of unalloyed titanium. This alloy is approved for use with the sour operation in NACE MR-01-75 standard.
Unalloyed Ti alloy ('Pure') 50A is hard to machine but can successfully be used with high feed rates and slow speeds. Grade 2 Ti Unalloyed ("pure") 50A alloy, which is then kept for 2hours, can be formed by power braking, hydro pressure, stretching and hammer drips by heating the material to 704 ° C. Methods of air cooling may be used in the manufacture of high-speed tungsten carbide or cobalt devices. 482 ° C (900 ° F) should be heated for 45 minutes for an intermediate relief of pain. The inspection ensures that the customer concerned is not supplied with poor quality or defective products. We test products such as macro, pitting, chemical, mechanical analysis, flattening test, flamming test, etc.

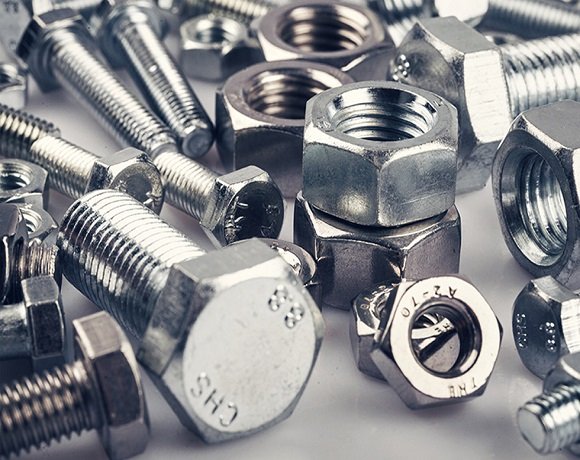

Titanium Grade 2 Fasteners is available in the type of Structural Bolts, Pan Head Screw, Anchor Bolt, T-Head Bolts, Screws, Hex Domed Cap Nuts, Studs, Nuts, Machine Screw, Hex Head Bolts, Socket Screw, Hex Set Screw, Anchors, Sockets, Screw, Marine Anchors, Foundation Bolts, Bolts, Allen Cap screw, Cap Screw, Stud Bolts, Socket Hexagon Head Screw, Hex Coupling Nut, Wing Screw, U- Bolts, Square Nut, Studs, J Bolts, Eye Bolt, Nut, Spring Washers, Mushroom Head Square Neck Bolts, Wing Screw, Socket Head Cap Screw, Washers, Hex Nut, Hexagon Nut.
.| Specifications | ASTM B 348 ASME SB 348 |
| Standard | DIN, ASTM, BS and all International Standards |
| Bolts Size | 3 mm to 200 mm | Custom Sizes |
| Nut Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Screw Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Machine Screws Size | M1.6 - M12 | Custom Sizes |
| Washers Size | M3 - M56 | 3/6" to 2" | Custom Sizes |
| Fasteners Type | Nut, Hex Coupling Nut, Hex Nut, Square Nut, Hex Domed Cap Nuts, Hex Head Bolts, Stud Bolts, Socket Hexagon Head Screw, Pan Head Screw, Socket Head Cap Screw, Wing Screw, T-Head Bolts, Foundation Bolts,Screw, Studs, Socket Screw, Hex Set Screw, Cap Screw, Machine Screw, Wing Screw, Spring Washers, Washers, Studs, Marine Anchors, Anchors, Hexagon Nut,U- Bolts, Anchor Bolt, Mushroom Head Square Neck Bolts, J Bolts,Eye Bolt,Structural Bolts, Bolts, Nuts, Sockets, Screws, Allen Cap screw |
|
|||
 |
|||
 |
|||
 |
|||
 |
|||
 |
|||
 |
|||
 |
|||
 |
| STANDARD | WERKSTOFF NR. | UNS |
| Titanium Gr. 2 Plate | 3.7035 | R50400 |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade 2 Plate | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| NOMINAL SIZE (D) | BODY DIAMETER | HEAD THICKNEASTM A193 | ACROASTM A193 THE FLATS | ACROASTM A193 CORNERS | ||||
|---|---|---|---|---|---|---|---|---|
| D (MAX) | D (MIN) | H (MAX) | H (MIN) | F (MAX) | F (MIN) | C (MAX) | C (MIN) | |
| m10 | 10.00 | 9.78 | 6.63 | 6.17 | 17.00 | 15.73 | 18.48 | 17.77 |
| m12 | 12.00 | 11.73 | 7.76 | 4.24 | 19.00 | 17.73 | 20.78 | 20.03 |
| m14 | 14.00 | 13.73 | 9.09 | 8.51 | 22.00 | 20.67 | 24.25 | 23.35 |
| m16 | 16.00 | 15.73 | 10.32 | 9.68 | 24.00 | 23.67 | 27.71 | 26.75 |
| m20 | 20.00 | 19.67 | 12.88 | 12.12 | 30.00 | 29.16 | 34.64 | 32.95 |
| m24 | 24.00 | 23.67 | 15.44 | 14.56 | 36.00 | 35.00 | 41.57 | 39.55 |
| m30 | 30.00 | 29.67 | 19.48 | 17.92 | 46.00 | 45.00 | 53.12 | 50.85 |
| m36 | 36.00 | 35.61 | 23.38 | 21.63 | 55.00 | 53.80 | 63.51 | 60.79 |
| m42 | 42.00 | 41.38 | 26.97 | 25.03 | 65.00 | 62.90 | 75.06 | 71.71 |
| m48 | 48.00 | 47.38 | 31.07 | 28.93 | 75.00 | 72.60 | 86.60 | 82.76 |
| m56 | 56.00 | 55.26 | 36.2 | 33.80 | 85.00 | 82.20 | 98.15 | 93.71 |
| m64 | 64.00 | 63.26 | 41.32 | 38.68 | 95.00 | 91.80 | 109.70 | 104.65 |
| m72 | 72.00 | 71.26 | 46.45 | 43.55 | 105.00 | 101.40 | 121.24 | 115.60 |
| m80 | 80.00 | 79.26 | 51.58 | 48.42 | 115.00 | 111.00 | 132.72 | 126.54 |
| m90 | 90.00 | 89.13 | 57.74 | 54.26 | 130.00 | 125.50 | 150.11 | 143.07 |
| m100 | 90.00 | 99.13 | 63.9 | 60.10 | 145.00 | 140.00 | 167.43 | 159.60 |
| Nominal Size or Basic Major Thread Diameter | F | G | H | ||||||
| Width Across Flats |
Width Across Corners |
Thickness | |||||||
| Basic | Max | Min | Max | Min | Basic | Max | Min | ||
| 1/4 | .2500 | 7/16 | .438 | .428 | .505 | .488 | 7/32 | .226 | .212 |
| 5/16 | .3125 | 1/2 | .500 | .489 | .577 | .557 | 17/64 | .273 | .258 |
| 3/8 | .3750 | 9/16 | .562 | .551 | .650 | .628 | 21/64 | .337 | .479 |
| 7/16 | .4375 | 11/16 | .688 | .675 | .794 | .768 | 3/8 | .385 | .365 |
| 1/2 | .5000 | 3/4 | .750 | .736 | .866 | .840 | 7/16 | .448 | .427 |
| 9/16 | .5625 | 7/8 | .875 | .861 | 1.010 | .982 | 31/64 | .496 | .473 |
| 5/8 | .6250 | 15/16 | .938 | .922 | 1.083 | 1.051 | 35/64 | .559 | .535 |
| 3/4 | .7500 | 1-1/8 | 1.125 | 1.088 | 1.299 | 1.240 | 41/64 | .665 | .617 |
| 7/8 | .8750 | 1-5/16 | 1.312 | 1.269 | 1.516 | 1.447 | 3/4 | .776 | .724 |
| 1 | 1.0000 | 1-1/2 | 1.500 | 1.450 | 1.732 | 1.653 | 55/64 | .887 | .831 |
| 1-1/8 | 1.1250 | 1-11/16 | 1.688 | 1.631 | 1.949 | 1.859 | 31/32 | .999 | .939 |
| 1-3/8 | 1.3750 | 2-1/16 | 2.062 | 1.994 | 2.382 | 2.273 | 1-11/64 | 1.206 | 1.138 |
| 1-1/2 | 1.500 | 2-1/4 | 2.250 | 2.175 | 2.598 | 2.480 | 1-9/32 | 1.ASTM A194 GR. 8 | 1.245 |
| 1-5/8 | 1.6250 | 2-7/16 | 2.438 | 2.356 | 2.815 | 2.686 | 1-25/64 | 1.429 | 1.353 |
| 1-3/4 | 1.7500 | 2-5/8 | 2.625 | 2.538 | 3.031 | 2.893 | 1-1/2 | 1.540 | 1.460 |
| 2 | 2.0000 | 3 | 3.000 | 2.900 | 3.464 | 3.306 | 1-23/32 | 1.763 | 1.675 |
| 2-1/4 | 2.2500 | 3-3/8 | 3.375 | 3.263 | 3.897 | 3.719 | 1-15/16 | 1.986 | 1.890 |
| 2-1/2 | 2.5000 | 3-3/4 | 3.750 | 3.625 | 4.330 | 4.133 | 2-5/32 | 2.209 | 2.105 |
| 2-3/4 | 2.7500 | 4-1/8 | 4.125 | 3.988 | 4.763 | 4.546 | 2-3/8 | 2.431 | 2.319 |
| Nut Size (mm) |
Diameter* (mm) |
Height (mm) |
||
|---|---|---|---|---|
| Hex Nut | Jam Nut | Nylock Nut | ||
| 2 | 4 | 1.6 | 1.2 | - |
| 2.5 | 5 | 2 | 1.6 | - |
| 3 | 5.5 | 2.4 | 1.8 | 4 |
| 4 | 7 | 3.2 | 2.2 | 5 |
| 5 | 8 | 4 | 2.7 | 5 |
| 6 | 10 | 5 | 3.2 | 6 |
| 7 | 11 | 5.5 | 3.5 | - |
| 8 | 13 | 6.5 | 4 | 8 |
| 10 | 17 | 8 | 5 | 10 |
| 12 | 19 | 10 | 6 | 12 |
| 14 | 22 | 11 | 7 | 14 |
| 16 | 24 | 13 | 8 | 16 |
| 18 | 27 | 15 | 9 | 18.5 |
| 20 | 30 | 16 | 10 | 20 |
| Bolt Size | USS | SAE | ||||
| OD (in.) | ID (in.) | Thickness | OD (in.) | ID (in.) | Thickness | |
| 1/8 (#6) | - | - | - | 0.375 | 0.156 | .036/.065 |
| 5/32 (#8) | - | - | - | 0.438 | 0.188 | .036/.065 |
| 3/16 (#10) | 0.560 | 0.250 | .036/.065 | 0.500 | 0.220 | .036/.065 |
| 7/32 (#12) | - | - | - | 0.562 | 0.250 | .051/.080 |
| 1/4 (#14) | 0.734 | 0.312 | .051/.080 | 0.625 | 0.281 | .051/.080 |
| 5/16 | 0.875 | 0.375 | .064/.104 | 0.688 | 0.344 | .051/.080 |
| 3/8 | 1.000 | 0.438 | .064/.104 | 0.812 | 0.406 | .051/.080 |
| 7/16 | 1.250 | 0.500 | .064/.104 | 0.922 | 0.469 | .051/.080 |
| 1/2 | 1.375 | 0.562 | .086/.132 | 1.062 | 0.531 | .074/.121 |
| 9/16 | 1.469 | 0.625 | .086/.132 | 1.156 | 0.594 | .074/.121 |
| 5/8 | 1.750 | 0.688 | .108/.160 | 1.312 | 0.656 | .074/.121 |
| 3/4 | 2.000 | 0.812 | .122/.177 | 1.469 | 0.812 | .108/.160 |
| 7/8 | 2.250 | 0.938 | .136/.192 | 1.750 | 0.938 | .108/.160 |
| 1 | 2.500 | 1.062 | .136/.192 | 2.000 | 1.062 | .108/.160 |
| 1 1/8 | 2.750 | 1.250 | .136/.192 | 2.250 | 1.250 | .108/.160 |
| 1 1/4 | 3.000 | 1.375 | .136/.192 | 2.500 | 1.375 | .136/.192 |
| 1 3/8 | 3.250 | 1.500 | .153/.213 | 2.750 | 1.500 | .136/.213 |
| 1 1/2 | 3.500 | 1.625 | .153/.213 | 3.000 | 1.625 | .153/.213 |
| 1 5/8 | 3.750 | 1.750 | .153/.213 | - | - | - |
| 1 3/4 | 4.000 | 1.875 | .153/.213 | - | - | - |
| 1 7/8 | 4.250 | 2.000 | .153/.213 | - | - | - |
| 2 | 4.500 | 2.125 | .153/.213 | - | - | - |
| 2 1/4 | 4.750 | 2.375 | .320/.248 | - | - | - |
| 2 1/2 | 5.000 | 2.625 | .210/.280 | - | - | - |
| 2 3/4 | 5.250 | 2.875 | .228/.410S | - | - | - |
| 3 | 5.500 | 3.125 | .249/.327 | - | - | - |
| Size | USS | SAE | ||||
|---|---|---|---|---|---|---|
| Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
Inside Diameter (A) |
Outside Diameter (B) |
Thickness (C) |
|
| #2 | - | - | - | 3/32" | 1/4" | 0.020" |
| #4 | - | - | - | 1/8" | 5/16" | 0.032" |
| #6 | - | - | - | 5/32" | 3/8" | 0.049" |
| #8 | - | - | - | 3/16" | 7/16" | 0.049" |
| Nominal | Thread. | Hex Socket Size | Body diameter and Head height | Head Dia | Soc. length | ||
| Size | Pitch | Max | Min | Max | Min | ||
| J | D /H | A | K | ||||
| M3 | 0.5 | 2.50 | 3.00 | 2.86 | 5.50 | 5.20 | 1.3 |
| M4 | 0.70 | 3.00 | 4.00 | 3.82 | 7.00 | 6.64 | 2.00 |
| M5 | 0.8 | 4.00 | 5.00 | 4.82 | 8.50 | 8.14 | 2.70 |
| M6 | 1.0 | 5.00 | 6.00 | 5.82 | 10.00 | 9.64 | 3.30 |
| M8 | 1.25 | 6.00 | 8.00 | 7.78 | 13.00 | 12.57 | 4.3 |
| M10 | 1.5 | 8.00 | 10.00 | 9.78 | 16.00 | 15.57 | 5.50 |
| M12 | 1.75 | 10.00 | 12.00 | 11.73 | 18.00 | 17.57 | 6.60 |
| M16 | 2.0 | 14.00 | 16.00 | 15.73 | 24.00 | 23.48 | 8.80 |
| M20 | 2.5 | 17.00 | 20.00 | 19.67 | 30.00 | 29.48 | 10.70 |
| M24 | 3.0 | 19.00 | 24.00 | 23.67 | 36.00 | 35.38 | 12.90 |
| WEIGHTS MACHINE SCREWS & Type 1, 23, F and G TAPPING SCREWS LBS. Per 1000 pieces |
|||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| DIAMETERS | |||||||||||
| LENGTHS | #2 | #3 | #4 | #5 | #6 | #8 | #10 | #12 | 1/4″ | 5/16″ | 3/8″ |
| 1/8 | 0.40 | 0.55 | 0.70 | 1.1 | 1.4 | — | — | — | — | — | — |
| 3/16 | 0.50 | 0.70 | 0.90 | 1.2 | 1.5 | 2.5 | 3.9 | — | — | — | — |
| 1/4 | 0.60 | 0.80 | 1.00 | 1.4 | 1.7 | 2.8 | 4.3 | 5.6 | 8.5 | — | — |
| 5/16 | 0.60 | 0.90 | 1.20 | 1.5 | 1.9 | 3.1 | 4.6 | 6.1 | 9.1 | 16.7 | — |
| 3/8 | 0.70 | 0.90 | 1.30 | 1.7 | 2.1 | 3.4 | 5.0 | 6.5 | 9.8 | 17.7 | 29.2 |
| 7/16 | 0.80 | 1.00 | 1.50 | 1.9 | 2.2 | 3.6 | 5.4 | 6.9 | 10.4 | 18.8 | 30.7 |
| 1/2 | 0.80 | 1.10 | 1.60 | 2.0 | 2.4 | 3.9 | 5.8 | 7.4 | 11.1 | 19.8 | 32.2 |
| 9/16 | 0.90 | 1.20 | 1.70 | 2.2 | 2.6 | 4.2 | 6.2 | 7.8 | 11.7 | 20.9 | 33.6 |
| 5/8 | 1.00 | 1.30 | 1.80 | 2.3 | 2.8 | 4.5 | 6.6 | 8.3 | 12.4 | 21.9 | 35.1 |
| 3/4 | 1.10 | 1.50 | 2.10 | 2.6 | 3.2 | 5.0 | 7.3 | 9.2 | 13.6 | 24.0 | 38.0 |
| 7/8 | 1.30 | 1.70 | 2.30 | 3.0 | 3.5 | 5.6 | 8.1 | 10.1 | 14.9 | 26.1 | 41.0 |
| 1″ | 1.40 | 1.90 | 2.50 | 3.4 | 3.9 | 6.2 | 8.9 | 11.0 | 16.1 | 28.8 | 44.0 |
| 1-1/8″ | 1.50 | 2.00 | 2.80 | 3.8 | 4.3 | 6.7 | 9.6 | 11.9 | 17.4 | 30.2 | 47.0 |
| 1-1/4″ | 1.60 | 2.20 | 3.00 | 4.1 | 4.6 | 7.3 | 10.4 | 12.8 | 18.7 | 32.3 | 49.8 |
| 1-1/2″ | 1.80 | 2.50 | 3.50 | 4.7 | 5.3 | 8.3 | 11.9 | 14.7 | 21.2 | 36.5 | 55.8 |
| 1-3/4″ | 2.10 | 2.90 | 4.00 | 5.3 | 6.1 | 9.4 | 13.5 | 16.5 | 23.7 | 40.7 | 61.7 |
| 2″ | 2.40 | 3.30 | 4.50 | 6.0 | 6.8 | 10.6 | 15.0 | 18.3 | 26.2 | 44.8 | 67.6 |
| 2-1/4″ | 2.60 | 3.60 | 5.00 | 6.7 | 7.6 | 11.8 | 16.6 | 20.1 | 28.8 | 19.0 | 73.5 |
| 2-1/2″ | 2.80 | 3.90 | 5.50 | 7.3 | 8.3 | 12.9 | 18.1 | 22.0 | 31.3 | 53.2 | 79.5 |
| 2-3/4″ | 3.10 | 4.30 | 6.00 | 7.9 | 9.1 | 13.9 | 19.7 | 23.8 | 33.9 | 57.3 | 85.3 |
| 3″ | 3.40 | 4.70 | 6.50 | 8.6 | 9.8 | 15.0 | 21.2 | 25.6 | 36.4 | 61.5 | 91.3 |
| * Weights above are approximate and are based on pan head machine screws | |||||||||||
These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.
We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.
To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
