Silicon Steels is the renowned manufacturers, supplier, stockiest, and exporter of Hastelloy C276 Sheets / Plates. ASTM B575 Hastelloy Alloy C276 Cold Rolled Sheets are manufactured using top quality raw material and new technology, under the guidance of highly skilled experts. Hastelloy C276 is austenitic steel. These ASME SB575 Hastelloy Alloy C276 Chequered Plates are available in different sizes and shapes at the most affording price. It is also available in customized shapes and sizes as per the client’s specifications. Hastelloy C276 Sheets are manufactured following international quality standards.

Hastelloy C276 Sheets have the best corrosion resistance to pitting and crevice corrosion. Its available thickness size is from 1 mm to 200 mm. Hastelloy C276 Plates contains 17% molybdenum and chromium, and 5% tungsten. Hastelloy C26 Coil has the best corrosion resistance to stress corrosion cracking. It possesses good mechanical properties. Hastelloy C276 Plates are non-magnetic. It is highly resistant to oxidation corrosion. It is mostly used at the most severe temperature. ASME SB575 Hastelloy C276 Embossed Sheets possesses high tensile strength with good welding and forming properties. ASME SB575 Nickel alloy Plates contains 7% Ferrite, 2.5 Carbon Monoxide, and 1% manganese content too.

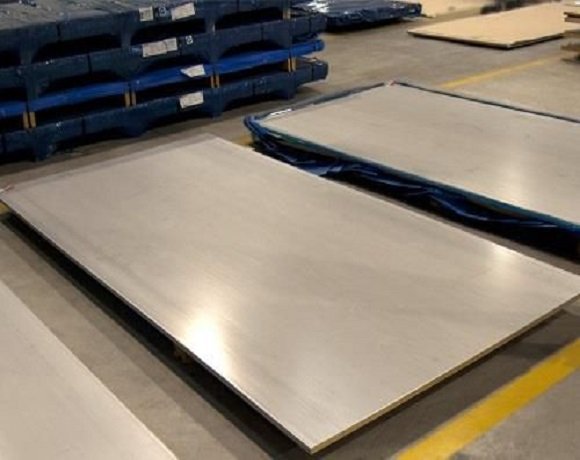

hastelloy c276 sheet/ plate supplier stockist

JIS NW 0276 Hastelloy® Alloy Chequer (Floor) Plate, ASME SB575 Hastelloy Alloy C-276 Chequered Plates, Hastelloy C276® Sheets Exporter, Rolls Distributors, Hastelloy® C276 Diamond Plate in Mumbai., UNS N10276 Hastelloy Hot Rolled Plates Stockists, Hastelloy® C276 Flats, C276 Hastelloy® Corrosion Resistant Plates Dealers in India, Type C-276 Hastelloy Alloy Rings, Hastelloy® Alloy C-276 Slotted Hole Sheets, Hastelloy® C-276 Coils Dealer, Hastelloy® Grade C276 Shim Sheets Exporters, ASTM B575 Nickel Alloy C276 Cold Rolled Sheets Manufactures, C-276 Hastelloy Coils, Hastelloy C-276® Sheets, Nickel Alloy C276 Strip, Hastelloy® C276 Alloy Plates, C276 Hastelloy® Slit Coils Stockholders in Mumbai India, Hastelloy® C276 Perforated Sheet Suppliers.

Specification :

Specifications	ASTM B575 / ASME SB575
Thickness	4mm-100mm
Width	1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc
Length	2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc
Surface	2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hairline, sand blast, Brush, etching, etc
Finish	Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated)

Types of Hastelloy C276 Sheet/ Plate :

ASTM B575 Hastelloy C276 Hot rolled Sheet ASME SB575 UNS N10276 Cold Rolled Sheet	Werkstoff Nr. 2.4819 2B Finish Sheet EN Nimo16Cr15W 2D Finish Sheet	JIS Nw 0276 Ba Finish Sheet Or Эп760 Satin Finish Sheet Gost Хн65Мву No.4 Sheet
ASTM B575 Hastelloy C276 Hot rolled Plate ASME SB575 UNS N10276 Cold Rolled Plate	Werkstoff Nr. 2.4819 2B Finish Plate EN Nimo16Cr15W 2D Finish Plate	JIS Nw 0276 Ba Finish Plate Or Эп760 Satin Finish Plate Gost Хн65Мву No.4 Plate
ASTM B575 Hastelloy C276 Hot rolled Coils ASME SB575 UNS N10276 Cold Rolled Coils	Werkstoff Nr. 2.4819 2B Finish Coils EN Nimo16Cr15W 2D Finish Coils	JIS Nw 0276 Ba Finish Coils Or Эп760 Satin Finish Coils Gost Хн65Мву No.4 Coils
ASTM B575 Hastelloy C276 Hot rolled Foils ASME SB575 UNS N10276 Cold Rolled Foils	Werkstoff Nr. 2.4819 2B Finish Foils EN Nimo16Cr15W 2D Finish Foils	JIS Nw 0276 Ba Finish Foils Or Эп760 Satin Finish Foils Gost Хн65Мву No.4 Foils
ASTM B575 Hastelloy C276 Hot rolled Strip ASME SB575 UNS N10276 Cold Rolled Strip	Werkstoff Nr. 2.4819 2B Finish Strip EN Nimo16Cr15W 2D Finish Strip	JIS Nw 0276 Ba Finish Strip Or Эп760 Satin Finish Strip Gost Хн65Мву No.4 Strip
ASTM B575 Hastelloy C276 Hot rolled Shim Sheet ASME SB575 UNS N10276 Cold Rolled Shim Sheet	Werkstoff Nr. 2.4819 2B Finish Shim Sheet EN Nimo16Cr15W 2D Finish Shim Sheet	JIS Nw 0276 Ba Finish Shim Sheet Or Эп760 Satin Finish Shim Sheet Gost Хн65Мву No.4 Shim Sheet
ASTM B575 Hastelloy C276 Hot rolled Roll ASME SB575 UNS N10276 Cold Rolled Roll	Werkstoff Nr. 2.4819 2B Finish Roll EN Nimo16Cr15W 2D Finish Roll	JIS Nw 0276 Ba Finish Roll Or Эп760 Satin Finish Roll Gost Хн65Мву No.4 Roll
ASTM B575 Hastelloy C276 Hot rolled Perforated Sheet ASME SB575 UNS N10276 Cold Rolled Perforated Sheet	Werkstoff Nr. 2.4819 2B Finish Perforated Sheet EN Nimo16Cr15W 2D Finish Perforated Sheet	JIS Nw 0276 Ba Finish Perforated Sheet Or Эп760 Satin Finish Perforated Sheet Gost Хн65Мву No.4 Perforated Sheet
ASTM B575 Hastelloy C276 Hot rolled Chequered Plate ASME SB575 UNS N10276 Cold Rolled Chequered Plate	Werkstoff Nr. 2.4819 2B Finish Chequered Plate EN Nimo16Cr15W 2D Finish Chequered Plate	JIS Nw 0276 Ba Finish Chequered Plate Or Эп760 Satin Finish Chequered Plate Gost Хн65Мву No.4 Chequered Plate
ASTM B575 Hastelloy C276 Hot rolled Ring ASME SB575 UNS N10276 Cold Rolled Ring	Werkstoff Nr. 2.4819 2B Finish Ring EN Nimo16Cr15W 2D Finish Ring	JIS Nw 0276 Ba Finish Ring Or Эп760 Satin Finish Ring Gost Хн65Мву No.4 Ring
ASTM B575 Hastelloy C276 Hot rolled Circle ASME SB575 UNS N10276 Cold Rolled Circle	Werkstoff Nr. 2.4819 2B Finish Circle EN Nimo16Cr15W 2D Finish Circle	JIS Nw 0276 Ba Finish Circle Or Эп760 Satin Finish Circle Gost Хн65Мву No.4 Circle
ASTM B575 Hastelloy C276 Hot rolled Flats ASME SB575 UNS N10276 Cold Rolled Flats	Werkstoff Nr. 2.4819 2B Finish Flats EN Nimo16Cr15W 2D Finish Flats	JIS Nw 0276 Ba Finish Flats Or Эп760 Satin Finish Flats Gost Хн65Мву No.4 Flats

Equivalent Grade :

STANDARD	UNS	WERKSTOFF NR.	AFNOR	EN	JIS	OR	GOST
Hastelloy C276	N10276	2.4819	–	NiMo16Cr15W	NW 0276	ЭП760	ХН65МВУ

Chemical Composition :

Hastelloy C276	Ni	C	Mo	Mn	Si	Fe	P	S	Co	Cr
Hastelloy C276	Balance	0.01 max	15 – 17	1.0 max	0.08 max	4 – 7	0.04 max	0.03 max	2.5 max	14.5 – 16.5

Dimensions of Hastelloy C276 Plate

Hastelloy C276 Plate Metric Dimensions

Surface finish	Thickness (mm)	Width (mm)
2B – Cold rolled, heat treated, pickled, skin passed	0.25–8.0	max. 2032
2D – Cold rolled, heat treated, pickled	0.4–6.35	max. 1524
2E – Cold rolled, heat treated, mechanically descaled	0.4–8.0	max. 2032
2R – Cold rolled, bright annealed	0.25–3.5	max. 1524
2H – Work hardened	0.4–6.35	max. 1524
Polished, brushed	0.5–4.0	max. 1524

Imperial Dimensions of Hastelloy C276 Sheet

Surface finish	Gauge (in)	Width (in)
2B – Cold rolled, heat treated, pickled, skin passed	10–24	max. 72*
2D – Cold rolled, heat treated, pickled	12–24	max. 60
BA Mexinox only	18–28	max. 48
Polished (not brushed)	11–24	max. 60
Temper rolled Mexinox only	13–29	max. 48

Weight Chart of Hastelloy C276 Plate

Thickness	Plate Weight per Unit Area	Density
3/16 inches	0.06000 lbs/in²42.184176 kg/m²	0.315 lbs/in³8.72 g/cm³
1/4 inches	0.08 lbs/in²56.245568 kg/m²	0.315 lbs/in³8.72 g/cm³
3/8 inches	0.121 lbs/in²85.0714216 kg/m²	0.315 lbs/in³8.72 g/cm³
1/2 inches	0.161 lbs/in²113.1942056 kg/m²	0.315 lbs/in³8.72 g/cm³
5/8 inches	0.196 lbs/in²137.8016416 kg/m²	0.315 lbs/in³8.72 g/cm³
3/4 inches	0.235 lbs/in²165.221356 kg/m²	0.315 lbs/in³8.72 g/cm³
7/8 inches	0.274 lbs/in²192.6410704 kg/m²	0.315 lbs/in³8.72 g/cm³
1 inches	0.313 lbs/in²220.0607848 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/4 inches	0.391 lbs/in²274.9002136 kg/m²	0.315 lbs/in³8.72 g/cm³
1 1/2 inches	0.47 lbs/in²330.442712 kg/m²	0.315 lbs/in³8.72 g/cm³
1 3/4 inches	0.549 lbs/in²385.9852104 kg/m²	0.315 lbs/in³8.72 g/cm³
2 inches	0.627 lbs/in²440.8246392 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/4 inches	0.705 lbs/in²495.664068 kg/m²	0.315 lbs/in³8.72 g/cm³
2 1/2 inches	0.784 lbs/in²551.2065664 kg/m²	0.315 lbs/in³8.72 g/cm³
2 3/4 inches	0.862 lbs/in²606.0459952 kg/m²	0.315 lbs/in³8.72 g/cm³
3 inches	0.941 lbs/in²661.5884936 kg/m²	0.315 lbs/in³8.72 g/cm³

Prices of Hastelloy C276 Plate / Sheet :

ASTM B575 Type Hastelloy C276 Plate
FOB Price: 1 X 1 MTR X 40 mm Thk : US $ 3120

1.5mm Hastelloy C276 Plate
FOB Price: 200 MM X 60 X 3 MM : US $ 73

ASTM B575 Gr Hastelloy C276 Plate Material
FOB Price: 4mm X 1500m X 3000m : US $ 930

SB575 GR Hastelloy C276 Clad Plate
FOB Price: 2 MTR X 2 MTR X6 MM THK : US $ 2966

Hastelloy C276 Sheet
FOB Price: 730 X 2080 X 8.5 mm : US $ 877

Polished SB575 TP Hastelloy C276 Sheet
FOB Price: 150X25X6.00 MM : US $ 82

2B Finish Duplex Alloy Hastelloy C276 Sheet
FOB Price: 6mm X 0.800 / 800H / 800HTm X 0.8000 m : US $ 252

Avesta Hastelloy C276 Perforated Sheet
FOB Price: 3.00 X 1500 X3000 : US $ 4.91/Kg

SB575 Hastelloy C276 Trim Plate
FOB Price: 1M X 5M X6 mm THK: US $ 5575

2mm thick Hastelloy C276 Steel Plate
FOB Price: 2 MTR X 2 MTR X2 MM THK : US $ 2356

SB575 Type Hastelloy C276 Shims Plate
FOB Price: 1 m X 1 m X 4mm THK: US $ 876

10mm thick Hastelloy C276 Alloy Plate
FOB Price: 10 mm THK X 4 FT X 8 FT : US $ 2898

Hot rolled Hastelloy C276 Plate
FOB Price: 1500 X 3415 2 MM : US $ 1214

Hastelloy C276 Coil
FOB Price: 10.00 X 200 X300 : US $ 4.93/Kg

ASTM B575 Type Hastelloy C276 Strip
FOB Price: 80 X 0.2 MM THK : US $ 15.51/Kg

Hastelloy C276 Foil
FOB Price: .024 HEIGHT X 0.75 WIDE X 50M : US $ 789

Applications :

These material are not a single material but the name for a family of corrosion resistant steels. Like many scientific breakthrough the origins of stainless steel lies in a lucky accident. From the smallest part of zipper to the largest building skyscraper, stainless steel is an essential part of modern life.Stainless steel’s strength, resistance to corrosion and low maintenance make it the ideal material for a wide range of applications. It is also has a long life cycle and is 100% recyclable.

Packaging Used By Us :

We ship our stainless steel metal products in industry leading packaging designed to ensure your order reaches its destination safely. We offer multiple packaging options to meet your specific requirements. Packing is quite important especially in a case of international shipments in which consignment pass through various channels to reach the ultimate destination, so we put special concern regarding packaging. We pack our goods in numerous ways based on the products. We pack our products in multiple ways.

Testing Used By Us :

To specify the various physical and mechanical properties of the finished product, various tests, both destructive and nondestructive, are performed. Metallurgical, hardness, hardenability, tension, ductility, compression, fatigue, impact, wear, corrosion, creep, machinability, radiography, magnetic particle, ultrasonic, and eddy current are some of the major tests that are performed by quality control personnel. Metallurgical testing is used to determine the quality of steel by analyzing the microstructure of a sample under a microscope. A cross section of a sample is first highly polished and then examined at a magnification from 100-500 diameters. The microstructure of steel consists of grains of different compositions and sizes.
